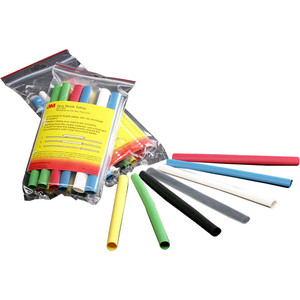

3M 6" Long, 2:1, Polyolefin Heat Shrink Electrical Tubing Black, Blue, Clear, Green, Red, White, Yellow 7000031557 - 73125635
Brand: 3M- SKU:
- 73125635
- ID:
- 408218
$39.37
3M 6" Long, 2:1, Polyolefin Heat Shrink Electrical Tubing Black, Blue, Clear, Green, Red, White, Yellow
Manufacturer Part #: 7000031557
S/N: 73125635
UNSPSC: 39121723
(Minimum Order Quantity=1, Package Quantity=21)
Specifications:
| Tubing Style | Heat Shrink | |
| Material | Polyolefin | |
| Shrink Ratio | 2 | 1 |
| Overall Length (Decimal Inch) | 6.0000 | |
| Overall Length (Inch) | 6 | |
| Color | Black, Blue, Clear, Green, Red, White, Yellow | |
| Inside Diameter After Shrinking (mm) | 2.36 | |
| Inside Diameter After Shrinking (Decimal Inch) | 0.0930 | |
| Shrink Temperature (Deg F) | 212.00 | |
| Resistance Features | Corrosion-Resistant, Fire-Resistant, Fungus-Resistant, Solvent-Resistant, Split-Resistant | |
| Wall Thickness After Shrinking (mm) | 0.51 | |
| Wall Thickness After Shrinking (Decimal Inch) | 0.0200 | |
| Minimum Operating Temperature (F) | -67 | |
| Maximum Operating Temperature (F) | 275 | |
| Standards | ABS Type Approved, AMS3636, AMS3637, CSA Certified, CSA LR38227, DTL-23053/5 Class 1 Class 2, RoHS Compliant, UL Recognized File E39100 | |
| Minimum Operating Temperature F | -67 | |
| Maximum Operating Temperature F | 275 |
