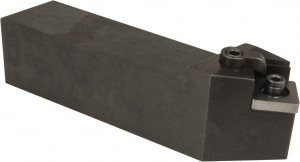

Kennametal RH MSSN Negative Rake Indexable Turning Toolholder 45° Lead Angle, 1-1/4" x 1-1/4" Shank, Takes SN..64. Inserts 1096042 - 73163297
Brand: Kennametal- SKU:
- 73163297
- ID:
- 687048
$191.98
Kennametal RH MSSN Negative Rake Indexable Turning Toolholder 45° Lead Angle, 1-1/4" x 1-1/4" Shank, Takes SN..64. Inserts
Manufacturer Part #: 1096042
S/N: 73163297
UNSPSC: 23153308
(Minimum Order Quantity=1, Package Quantity=1)
Specifications:
| Toolholder Style | MSSN |
| Hand of Holder | Right Hand |
| Insert Compatibility | SN..64. |
| Insert Holding Method | Clamp, Screw |
| Shank Width (Inch) | 1-1/4 |
| Shank Height (Inch) | 1-1/4 |
| Overall Length (Decimal Inch) | 6.0000 |
| Shank Height (mm) | 31.75 |
| Overall Length (mm) | 152.40 |
| Coolant Through | No |
| Rake | Negative |
| Multi-use Tool | No |
| Shank Width (Decimal Inch) | 1.2500 |
| Shank Height (Decimal Inch) | 1.2500 |
| Series | Kenloc |
| Overall Length (Inch) | 6 |
| Head Length (Decimal Inch) | 1.4800 |
| Back of Bar to Cutting Edge (Decimal Inch) | 0.9920 |
| Insert Inscribed Circle (Decimal Inch) | 0.7500 |
| Insert Inscribed Circle (Inch) | 3/4 |
| Toolholder Material | Steel |
| Complete Insert Compatibility | SN.. 643 |
| Coating Classification | Kennametal |
| Manufacturers Catalog Number | MSSNR, L206D |
