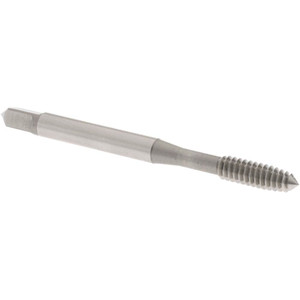

OSG Thread Forming Tap: #10-24 UNC, Plug, Cobalt, Bright Finish H3, Series HY-PRO NRT 1400119100 - 73320251
Brand: OSG USA, INC.- SKU:
- 73320251
- ID:
- 781853
$18.08
OSG Thread Forming Tap: #10-24 UNC, Plug, Cobalt, Bright Finish H3, Series HY-PRO NRT
Manufacturer Part #: 1400119100
S/N: 73320251
(Minimum Order Quantity=1, Package Quantity=1)
Specifications:
| Thread Size (Inch) | #10-24 |
| Thread Standard | UNC |
| Chamfer | Plug |
| Chamfered Threads | 4-4.5P |
| Material | Cobalt |
| Coating/Finish | Bright |
| Coolant Through | No |
| Thread Limit | H3 |
| Overall Length (Inch) | 2-3/8 |
| Overall Length (Decimal Inch) | 2.3750 |
| Thread Direction | Right Hand |
| Thread Length (Decimal Inch) | 0.4920 |
| Shank Diameter (Decimal Inch) | 0.1940 |
| Square Length (Decimal Inch) | 0.2500 |
| Material Application | Alloy Steel, Aluminum, Carbon Steel, Die Steel, Hardened Steel, Stainless Steel |
| Application | Through-Hole Threading |
| Series | 14001 |
| Tapping Depth (Decimal Inch) | 0.8660 |
| Square Size (Decimal Inch) | 0.1520 |
| Threads per Inch | 24 |
| Material Application Code | P, N |
| Trade Name | HY-PRO NRT |
