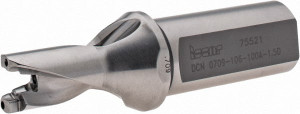

Iscar 0.709 to 0.744", 1.5xD, 1.06" Max Depth, 1" Shank Diam, 4.39" OAL, Replaceable-Tip Drill Uses FCP, ICK, ICK-2M, ICM, ICN, ICP, iCP-2M Inserts, Seat Size 18, DCN Toolholder, Series SumoCham 3202512 - 73382905
Brand: Iscar- SKU:
- 73382905
- ID:
- 645344
$513.09
Iscar 0.709 to 0.744", 1.5xD, 1.06" Max Depth, 1" Shank Diam, 4.39" OAL, Replaceable-Tip Drill Uses FCP, ICK, ICK-2M, ICM, ICN, ICP, iCP-2M Inserts, Seat Size 18, DCN Toolholder, Series SumoCham
Manufacturer Part #: 3202512
S/N: 73382905
UNSPSC: 23291502
(Minimum Order Quantity=1, Package Quantity=1)
Specifications:
| Minimum Drill Diameter (Decimal Inch) | 0.7090 |
| Maximum Drill Diameter (Decimal Inch) | 0.7440 |
| Maximum Drill Depth (Decimal Inch) | 1.0600 |
| Shank Type | Weldon Flat |
| Shank Diameter (Inch) | 1in |
| Shank Diameter (Decimal Inch) | 1.0000 |
| Insert Seat Size | 18 |
| Maximum Drill Depth Range (Decimal Inch) | 0.0000 to 1.5000 |
| Compatible Insert Style | FCP, ICK, ICK-2M, ICM, ICN, ICP, iCP-2M |
| Overall Length (Decimal Inch) | 4.3900in |
| Series | SumoCham |
| Toolholder Style | DCN |
| Body Length (Decimal Inch) | 2.1900in |
| Shank Length (Decimal Inch) | 2.2000in |
| Tool Application | Holemaking |
| Standards | ISO 13399 |
| Coolant Through | Yes |
| UNSPSC Code | 23291502 |
