Iscar 1.5mm Max Depth, 0.5mm to 4mm Width, Internal Indexable Grooving Toolholder 62mm OAL, 6mm Shank, Uses GIQ.. Inserts, MGCH Toolholder, Through Coolant, Series ChamGroove 2801658 - 73383101
Brand: Iscar- SKU:
- 73383101
- ID:
- 685543
$371.47

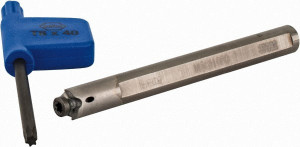

Iscar 1.5mm Max Depth, 0.5mm to 4mm Width, Internal Indexable Grooving Toolholder 62mm OAL, 6mm Shank, Uses GIQ.. Inserts, MGCH Toolholder, Through Coolant, Series ChamGroove
Manufacturer Part #: 2801658
S/N: 73383101
UNSPSC: 23153308
(Minimum Order Quantity=1, Package Quantity=1)
Specifications:
| Internal or External | Internal |
| Toolholder Type | Non-Face Grooving |
| Maximum Depth of Cut (Decimal Inch) | 0.0591 |
| Maximum Depth of Cut (mm) | 1.50 |
| Minimum Groove Width (Decimal Inch) | 0.0197 |
| Minimum Groove Width (mm) | 0.50 |
| Maximum Groove Width (mm) | 4.00 |
| Toolholder Style | MGCH |
| Maximum Groove Width (Decimal Inch) | 0.1575 |
| Insert Holding Method | Screw |
| Insert Compatibility | GIQ.. |
| Compatible Insert Size Code | GIQR/L 8 |
| Shank Width/Diameter (Decimal Inch) | 0.2362 |
| Shank Width/Diameter (mm) | 6.00 |
| Series | Cham Groove |
| Overall Length (mm) | 62.00 |
| Overall Length (Decimal Inch) | 2.4409 |
| Multi-use Tool | Yes |
| Center to Cutting Edge (Decimal Inch) | 0.1890 |
| Center to Cutting Edge (mm) | 4.80 |
| Minimum Hole Diameter (mm) | 8.00 |
| Minimum Hole Diameter (Decimal Inch) | 0.3150 |
| Primary Workpiece Material | Universal |
| Primary Workpiece Material Code | H, K, M, N, P, S |
| Standards | ISO 13399 |
| Toolholder Material | Solid Carbide |
| Complete Insert Compatibility | GIQL 11-0.75-0.00, GIQL 11-0.85-0.00, GIQL 11-0.95-0.00, GIQL 11-1.04-0.05, GIQL 11-1.20-0.05, GIQL 11-1.20-R060, GIQL 11-1.40-0.05, GIQL 11-1.50-0.05, GIQL 11-1.70-0.05, GIQL 11-1.80-R090, GIQL 11-1.96-0.10, GIQL 11-15-1.50-0.05, GIQL 11-15-2.00-0.10 |
| Coolant Through | Yes |
