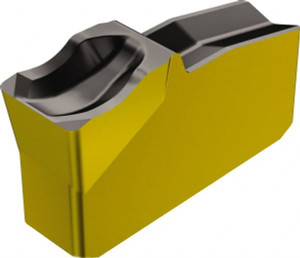

Sandvik Coromant N151.2-500-4E 4225 Carbide Cutoff Insert TiCN/Al2O3/TiN Finish, 0° Neutral Lead Angle, Neutral Insert, 5mm Cutting Width, 0.4mm Corner Radius, Series T-Max Q-Cut 5737235 - 73488553
Brand: Sandvik Coromant- SKU:
- 73488553
- ID:
- 647616
$31.52
Sandvik Coromant N151.2-500-4E 4225 Carbide Cutoff Insert TiCN/Al2O3/TiN Finish, 0° Neutral Lead Angle, Neutral Insert, 5mm Cutting Width, 0.4mm Corner Radius, Series T-Max Q-Cut
Manufacturer Part #: 5737235
S/N: 73488553
UNSPSC: 23242105
(Minimum Order Quantity=1, Package Quantity=1)
Specifications:
| Insert Style | N151.2 |
| Insert Size Code | 50 |
| Insert Material | Solid Carbide |
| Manufacturer Grade | 4225 |
| Cutting Width (Decimal Inch) | 0.1969 |
| Cutting Width (mm) | 5.00 |
| Insert Holding Method | Clamp |
| Lead Angle Direction | Neutral |
| Insert Hand | Neutral |
| Lead Angle | 0 |
| Relief Angle | 7.00 |
| Corner Radius (mm) | 0.40 |
| Corner Radius (Decimal Inch) | 0.0157 |
| Chipbreaker | 4E |
| Series | T-Max Q-Cut |
| Coating Process | MTCVD |
| Manufacturers Catalog Number | N151.2-500-4E 4225 |
| Insert Seat Size | 50 |
| Full Radius | No |
| Overall Width (Decimal Inch - 4 Decimals) | 0.1969 |
| Overall Width (mm) | 5.00 |
| Coating/Finish | TiCN/Al2O3/TiN |
| UNSPSC Code | 23242105 |
