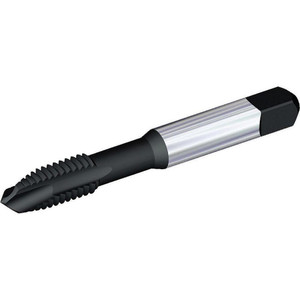

Kennametal Spiral Point Tap: M6x1 Metric, 3 Flutes, Plug Chamfer, 6H Class of Fit, High-Speed Steel-E, TiCN,TiN Coated 5/8" Thread Length, 2-1/2" OAL, Right Hand, D5, Series T820 5431706 - 73724510
Brand: Kennametal- SKU:
- 73724510
- ID:
- 774685
$50.59
Kennametal Spiral Point Tap: M6x1 Metric, 3 Flutes, Plug Chamfer, 6H Class of Fit, High-Speed Steel-E, TiCN,TiN Coated 5/8" Thread Length, 2-1/2" OAL, Right Hand, D5, Series T820
Manufacturer Part #: 5431706
S/N: 73724510
(Minimum Order Quantity=1, Package Quantity=1)
Specifications:
| Thread Size (mm) | M6x1 |
| Thread Standard | Metric |
| Chamfer | Plug |
| Material | HSS-E |
| Thread Limit | D5 |
| Class Of Fit | 6H |
| Coating/Finish | TiCN, TiN |
| Thread Direction | Right Hand |
| Coolant Through | No |
| Number Of Flutes | 3 |
| Material Application | Steel, Stainless Steel, Cast Iron, Non-Ferrous Metal |
| Oversize | No |
| Interrupted Thread | No |
| Threads per Inch | 25.4 |
| Overall Length (Inch) | 2-1/2 |
| Overall Length (Decimal Inch) | 2.5 |
| Overall Length (mm) | 25.50 |
| Thread Pitch (mm) | 1 |
| Material Grade | KSP32 |
| Thread Length (Decimal Inch) | 0.6300 |
| Thread Length (Inch) | 5/8 |
| Thread Length (mm) | 16.00 |
| Amount Oversize (Decimal Inch) | 0.0030 |
| Shank Diameter (mm) | 6.48 |
| Shank Diameter (Decimal Inch) | 0.2550 |
| Application | Through-Hole Threading |
| Neck Length (Decimal Inch) | 0.3700 |
| Square Size (mm) | 4.80 |
| Series | T820 |
| Style | Spiral Point |
| UNSPSC Code | 23241600 |
