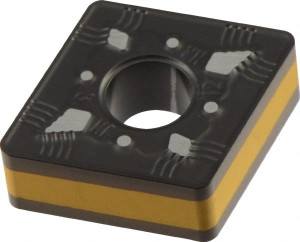

Iscar CNMG543NR IC8250 Carbide Turning Insert TiCN/Al2O3/TiN Finish, 15.9mm Long, 5/8" Inscribed Circle, 3/64" Corner Radius, 80° Diamond, Series Isoturn 5507693 - 73879314
Brand: Iscar- SKU:
- 73879314
- ID:
- 670483
$36.77
Iscar CNMG543NR IC8250 Carbide Turning Insert TiCN/Al2O3/TiN Finish, 15.9mm Long, 5/8" Inscribed Circle, 3/64" Corner Radius, 80° Diamond, Series Isoturn
Manufacturer Part #: 5507693
S/N: 73879314
UNSPSC: 23242105
(Minimum Order Quantity=1, Package Quantity=1)
Specifications:
| Relief Angle | 0 |
| Insert Style | CNMG |
| Corner Radius (mm) | 0.05 |
| Corner Radius (Inch) | 3/64 |
| Corner Radius (Decimal Inch) | 0.0469 |
| Included Angle | 80.0 |
| Manufacturer Grade | IC8250 |
| Coating/Finish | TiCN, Al2O3, TiN |
| Insert Thickness (Inch) | 1/4 |
| Insert Thickness (Decimal Inch) | 0.2500 |
| Series | Isoturn |
| Inscribed Circle (Inch) | 5/8 |
| Inscribed Circle (Decimal Inch) | 0.6250 |
| Insert Material | Solid Carbide |
| Insert Shape | Diamond |
| Insert Shape Code | C |
| Hole Diameter (Decimal Inch) | 0.2500 |
| Maximum Depth of Cut (mm) | 7.00 |
| Maximum Depth of Cut (Decimal Inch) | 0.2756 |
| Insert Holding Method | Clamp, Pin |
| Clearance Code | N |
| Tolerance Code | M |
| Coating Process | PVD |
| Length Range (Decimal Inch) | 0.6000 - 0.6500 |
| Insert Length (mm) | 15.90 |
| Insert Length (Decimal Inch) | 0.6260 |
| Primary Workpiece Material | P |
| Primary Workpiece Material Code | M, P |
| Secondary Workpiece Material | M |
| Secondary Workpiece Material Code | M |
| Iso Code | ISO 13399 |
| Standards | ISO 13399 |
| Stocking Category | D |
| Chip Breaker | NR |
| Insert Size Code | 543 |
