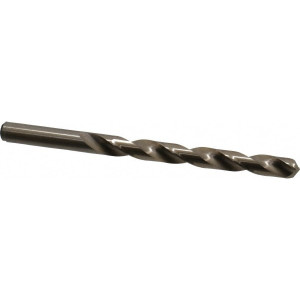

Cleveland Twist Drill 21/64" 135° Cobalt Jobber Drill Oxide/Gold Finish, Right Hand Cut, Spiral Flute, Straight Shank, 4-5/8" OAL, Split Point C70020 - 74329954
Brand: Cleveland Twist Drill- SKU:
- 74329954
- ID:
- 718543
$16.80
Cleveland Twist Drill 21/64" 135° Cobalt Jobber Drill Oxide/Gold Finish, Right Hand Cut, Spiral Flute, Straight Shank, 4-5/8" OAL, Split Point
Manufacturer Part #: C70020
S/N: 74329954
UNSPSC: 23241634
UPC: 697334700203
(Minimum Order Quantity=1, Package Quantity=1)
Specifications:
| Drill Bit Size (Inch) | 21/64 |
| Drill Bit Size (Decimal Inch) | 0.3281 |
| Drill Bit Material | Cobalt |
| Drill Point Angle (Degrees) | 135 |
| Flute Type | Spiral |
| Cutting Direction | Right Hand |
| Point Type | Split |
| Primary Workpiece Material | Aluminum |
| Specification Number | NAS 907 |
| Coolant Through | No |
| Number of Flutes | 2 |
| Drill Bit Finish/Coating | Gold, Oxide |
| Flute Length (Inch) | 3-5/16 |
| Overall Length (Inch) | 4-5/8 |
| Spiral Type | Regular |
| Series | 2213 |
| Shank Diameter (Inch) | 21/64 |
| Shank Length (mm) | 33.34 |
| Shank Length (Decimal Inch) | 1.3125 |
| Drill Bit Diameter Tolerance | -0.0010 to 0.0000 in |
| Web Thinning | Web-Thinned |
| Web Configuration | Tapered |
| Shank Type | Straight-Cylindrical |
| Standards | NAS 907 Type J |
| Drill Bit Grade | Heavy Duty |
| Drill Bit Size Range (Decimal Inch) | 0.3000 - 0.3500 |
| Material Grade | M42 |
| Specification Designation | NAS |
| UNSPSC Code | 23241634 |
