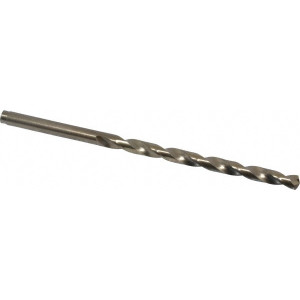

Cleveland Twist Drill #21 135° Cobalt Jobber Drill Oxide/Gold Finish, Right Hand Cut, Spiral Flute, Straight Shank, 3-1/4" OAL, Split Point C70154 - 74331190
Brand: Cleveland Twist Drill- SKU:
- 74331190
- ID:
- 718022
$6.10
Cleveland Twist Drill #21 135° Cobalt Jobber Drill Oxide/Gold Finish, Right Hand Cut, Spiral Flute, Straight Shank, 3-1/4" OAL, Split Point
Manufacturer Part #: C70154
S/N: 74331190
UNSPSC: 23241634
UPC: 697334701545
(Minimum Order Quantity=1, Package Quantity=1)
Specifications:
| Drill Bit Size (Wire) | #21 |
| Drill Bit Size (Decimal Inch) | 0.1590 |
| Drill Bit Material | Cobalt |
| Drill Point Angle (Degrees) | 135 |
| Flute Type | Spiral |
| Cutting Direction | Right Hand |
| Point Type | Split |
| Primary Workpiece Material | Aluminum |
| Specification Number | NAS 907 |
| Coolant Through | No |
| Number of Flutes | 2 |
| Drill Bit Finish/Coating | Gold, Oxide |
| Flute Length (Inch) | 2-1/8 |
| Shank Diameter (Decimal Inch) | 0.1590 |
| Overall Length (mm) | 82.55 |
| Overall Length (Inch) | 3-1/4 |
| Overall Length (Decimal Inch) | 3.2500 |
| Spiral Type | Regular |
| Series | 2213 |
| Shank Length (mm) | 28.57 |
| Shank Length (Decimal Inch) | 1.1250 |
| Drill Bit Diameter Tolerance | -0.0007 to 0.0000 in |
| Web Thinning | Web-Thinned |
| Web Configuration | Tapered |
| Shank Type | Straight-Cylindrical |
| Standards | NAS 907 Type J |
| Drill Bit Grade | Heavy Duty |
| Drill Bit Size Range (Decimal Inch) | 0.1500 - 0.2000 |
| Material Grade | M42 |
| Specification Designation | NAS |
| UNSPSC Code | 23241634 |
