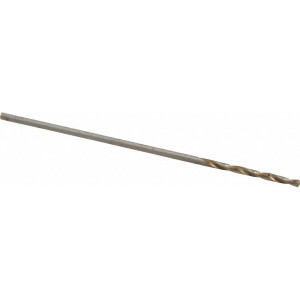

Cleveland Twist Drill #63 135° Cobalt Jobber Drill Oxide/Gold Finish, Right Hand Cut, Spiral Flute, Straight Shank, 1-1/2" OAL, Split Point C70196 - 74331612
Brand: Cleveland Twist Drill- SKU:
- 74331612
- ID:
- 717779
$5.20
Cleveland Twist Drill #63 135° Cobalt Jobber Drill Oxide/Gold Finish, Right Hand Cut, Spiral Flute, Straight Shank, 1-1/2" OAL, Split Point
Manufacturer Part #: C70196
S/N: 74331612
UNSPSC: 23241634
UPC: 697334701965
(Minimum Order Quantity=12)
(Please order in multiples of 12)
Specifications:
| Drill Bit Size (Wire) | #63 |
| Drill Bit Size (Decimal Inch) | 0.0370 |
| Drill Bit Material | Cobalt |
| Drill Point Angle (Degrees) | 135 |
| Flute Type | Spiral |
| Cutting Direction | Right Hand |
| Point Type | Split |
| Primary Workpiece Material | Aluminum |
| Specification Number | NAS 907 |
| Coolant Through | No |
| Number of Flutes | 2 |
| Drill Bit Finish/Coating | Gold, Oxide |
| Flute Length (Inch) | 5/8 |
| Shank Diameter (Decimal Inch) | 0.0370 |
| Overall Length (mm) | 38.10 |
| Overall Length (Inch) | 1-1/2 |
| Overall Length (Decimal Inch) | 1.5000 |
| Spiral Type | Regular |
| Series | 2213 |
| Shank Length (mm) | 22.22 |
| Shank Length (Decimal Inch) | 0.8750 |
| Drill Bit Diameter Tolerance | -0.0005 to 0.0000 in |
| Web Thinning | Web-Thinned |
| Web Configuration | Tapered |
| Shank Type | Straight-Cylindrical |
| Standards | NAS 907 Type J |
| Drill Bit Grade | Heavy Duty |
| Drill Bit Size Range (Decimal Inch) | 0.0000 - 0.0500 |
| Material Grade | M42 |
| Specification Designation | NAS |
| UNSPSC Code | 23241634 |
