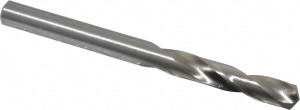

Cleveland Twist Drill #6 135° Spiral Flute High Speed Steel Screw Machine Drill Bit Bright Finish, Right Hand Cut, 1-1/4" Flute Length, 2-3/8" OAL, Split Point, Straight Shank C70310 - 74332396
Brand: Cleveland Twist Drill- SKU:
- 74332396
- ID:
- 733865
$4.69
Cleveland Twist Drill #6 135° Spiral Flute High Speed Steel Screw Machine Drill Bit Bright Finish, Right Hand Cut, 1-1/4" Flute Length, 2-3/8" OAL, Split Point, Straight Shank
Manufacturer Part #: C70310
S/N: 74332396
UNSPSC: 23241635
UPC: 697334703105
(Minimum Order Quantity=1, Package Quantity=1)
Specifications:
| Drill Bit Size (Wire) | #6 |
| Drill Bit Size (Decimal Inch) | 0.2040 |
| Tool Material | High-Speed Steel |
| Cutting Direction | Right Hand |
| Coating/Finish | Bright/Uncoated |
| Number Of Flutes | 2 |
| Spiral Type | Regular |
| Flute Type | Spiral |
| Drill Point Angle | 135 |
| Coolant Through | No |
| Shank Type | Straight-Cylindrical |
| Point Type | Split |
| Primary Workpiece Material | Alloy, Aluminum |
| Shank Diameter (Decimal Inch) | 0.2040 |
| Overall Length (Inch) | 2-3/8 |
| Series | 2330 |
| Web Thinning | Web-Thinned |
| Web Configuration | Parallel |
| Drill Length Type | Screw Machine |
| Shank Length (Inch) | 1-1/8 |
| Drill Bit Diameter Tolerance | +0.0000 to -0.0007 in |
| Standards | ASME B94.11M |
| Flute Length (Decimal Inch) | 1.2500 |
| Flute Length (Inch) | 1-1/4 |
| Flute Length (mm) | 31.75 |
| Drill Bit Grade | Heavy Duty |
| Drill Bit Size Range (Decimal Inch) | 0.2000 to 0.2500 |
| Specification Number | NAS 907 Type C |
| Specification Designation | NAS |
