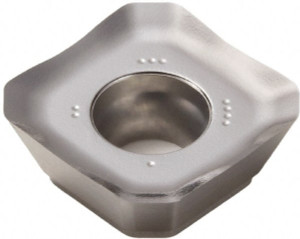

Seco Tools SEEX1204AFN-E08 H25 Carbide Milling Insert Uncoated, 0.187" Thick x 1/2" Wide 02426793 - 74508664
Brand: Seco Tools- SKU:
- 74508664
- ID:
- 662743
$33.32
Seco Tools SEEX1204AFN-E08 H25 Carbide Milling Insert Uncoated, 0.187" Thick x 1/2" Wide
Manufacturer Part #: 02426793
S/N: 74508664
UNSPSC: 23291601
(Minimum Order Quantity=1, Package Quantity=1)
Specifications:
| Insert Style | SEEX |
| Insert Size | 12 |
| Insert Material | Solid Carbide |
| Insert Shape | Square |
| Manufacturer Grade | H25 |
| Corner Radius (Decimal Inch) | 0.0441 |
| Number Of Cutting Edges | 4 |
| Thickness (Decimal Inch - 4 Decimals) | 0.1874 |
| Coating/Finish | Bright/Uncoated |
| Relief Angle | 20 |
| Maximum Depth of Cut (Decimal Inch) | 0.3425 |
| Insert Size Code | 1204 |
| Material Grade | Micrograin |
| Width (Inch) | 1/2 |
| Length (Inch) | 1/2 |
| Thickness (Inch) | 3/16 |
| Inscribed Circle (Inch) | 1/2 |
| Inscribed Circle (Decimal Inch) | 0.5000 |
| Thickness Range (Decimal Inch) | 0.1850 to 0.2000 |
| Inscribed Circle Range (Decimal Inch) | 0.5000 to 0.5100 |
| Length Range (Decimal Inch) | 0.5000 to 0.6000 |
| Insert Hand | Neutral |
| Series | SEEX-12 |
| Coating Process | Uncoated |
| Hole Diameter (Decimal Inch) | 0.1772 |
| Cutting Edge Effective Length (Decimal Inch) | 0.5000 |
| Rake | Positive |
| Primary Workpiece Material | Non-Ferrous Metal |
| Primary Workpiece Material Code | N |
| Secondary Workpiece Material | Superalloys & Titanium |
| Secondary Workpiece Material Code | S |
| Ansi Code | SEEX1204AFN-E08 |
| Iso Code | SEEX1204AFN-E08 |
| Standards | ISO |
| Rake Angle | 25 |
| Cutting Edge Style | Honed |
| Manufacturers Catalog Number | SEEX1204AFN-E08 |
| Cutter Series Compatibility | R217.53-12, R220.53-12 |
| Chip Breaker | E08 |
| Material Application | Non-Ferrous Metal, Superalloys & Titanium |
| Shape | Square |
| Insert Holding Method | Screw |
| Coating Classification | Uncoated |
| Single or Double Sided Insert | Single |
| Included Angle Degree | 90 |
| Width (Decimal Inch - 4 Decimals) | 0.5000 |
| Multi-Use Tool | Yes |
| Length (Decimal Inch - 4 Decimals) | 0.5000 |
