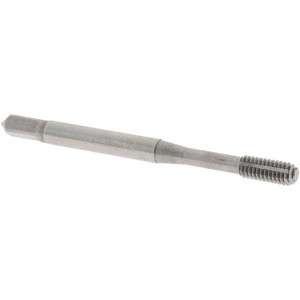

OSG Thread Forming Tap: M4x0.70 Metric Coarse, Bottoming, Cobalt, Bright Finish D4, Series HY-PRO NRT 1410102400 - 75537621
Brand: OSG USA, INC.- SKU:
- 75537621
- ID:
- 783107
$18.85
OSG Thread Forming Tap: M4x0.70 Metric Coarse, Bottoming, Cobalt, Bright Finish D4, Series HY-PRO NRT
Manufacturer Part #: 1410102400
S/N: 75537621
(Minimum Order Quantity=1, Package Quantity=1)
Specifications:
| Thread Size (mm) | M4x0.7 |
| Thread Standard | Metric Coarse |
| Chamfer | Bottoming |
| Chamfered Threads | 1-1.5P |
| Material | Cobalt |
| Coating/Finish | Bright |
| Coolant Through | No |
| Class Of Fit | 4H |
| Thread Limit | D4 |
| Overall Length (Decimal Inch) | 2.1260 |
| Overall Length (mm) | 54.00 |
| Thread Direction | Right Hand |
| Thread Length (Decimal Inch) | 0.3307 |
| Thread Length (mm) | 8.40 |
| Shank Diameter (Decimal Inch) | 0.1680 |
| Shank Diameter (mm) | 4.27 |
| Square Length (mm) | 6.35 |
| Material Application | Alloy Steel, Aluminum, Carbon Steel, Die Steel, Hardened Steel, Stainless Steel |
| Application | Blind Hole Threading |
| Series | 14101 |
| Tapping Depth (Decimal Inch) | 0.7717 |
| Tapping Depth (mm) | 19.60 |
| Square Size (Decimal Inch) | 0.1310 |
| Square Size (mm) | 3.33 |
| Material Application Code | P, N |
| Trade Name | HY-PRO NRT |
