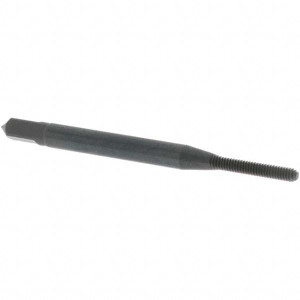

OSG Thread Forming Tap: M2x0.40 Metric Coarse, Bottoming, Cobalt, Oxide Coated D3, Series HY-PRO NRT 1410100401 - 75537761
Brand: OSG USA, INC.- SKU:
- 75537761
- ID:
- 783032
$29.50
OSG Thread Forming Tap: M2x0.40 Metric Coarse, Bottoming, Cobalt, Oxide Coated D3, Series HY-PRO NRT
Manufacturer Part #: 1410100401
S/N: 75537761
(Minimum Order Quantity=1, Package Quantity=1)
Specifications:
| Thread Size (mm) | M2x0.4 |
| Thread Standard | Metric Coarse |
| Chamfer | Bottoming |
| Chamfered Threads | 1-1.5P |
| Material | Cobalt |
| Coating/Finish | Steam Oxide |
| Coolant Through | No |
| Class Of Fit | 4H |
| Thread Limit | D3 |
| Overall Length (Inch) | 1-3/4 |
| Overall Length (Decimal Inch) | 1.7500 |
| Overall Length (mm) | 44.30 |
| Thread Direction | Right Hand |
| Thread Length (Decimal Inch) | 0.4331 |
| Thread Length (mm) | 11.10 |
| Shank Diameter (Decimal Inch) | 0.1410 |
| Shank Diameter (mm) | 3.58 |
| Square Length (mm) | 4.76 |
| Material Application | Alloy Steel, Aluminum, Carbon Steel, Die Steel, Hardened Steel, Stainless Steel |
| Application | Blind Hole Threading |
| Series | 14101 |
| Tapping Depth (Decimal Inch) | 0.4760 |
| Tapping Depth (mm) | 12.10 |
| Square Size (Decimal Inch) | 0.1100 |
| Square Size (mm) | 2.79 |
| Material Application Code | P, N |
| Trade Name | HY-PRO NRT |
