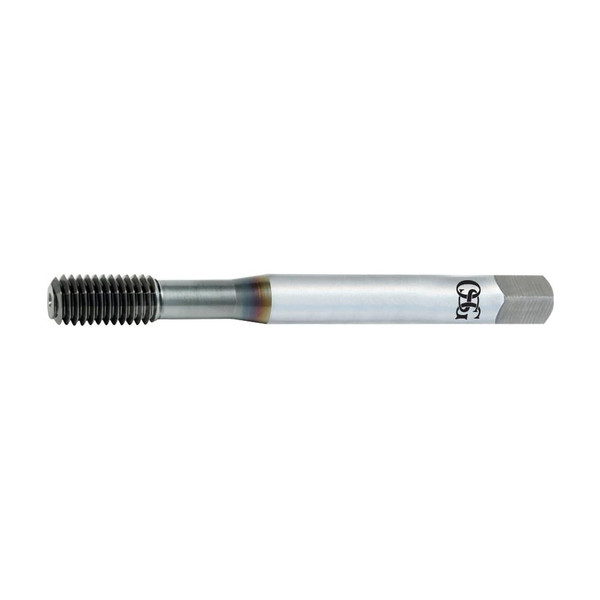

OSG Thread Forming Tap: M12x1.75 Metric Coarse, Bottoming, Cobalt, Oxide Coated D11, Series HY-PRO NRT 1410105501 - 75537944
Brand: OSG USA, INC.- SKU:
- 75537944
- ID:
- 782942
$52.12
OSG Thread Forming Tap: M12x1.75 Metric Coarse, Bottoming, Cobalt, Oxide Coated D11, Series HY-PRO NRT
Manufacturer Part #: 1410105501
S/N: 75537944
(Minimum Order Quantity=1, Package Quantity=1)
Specifications:
| Thread Size (mm) | M12x1.75 |
| Thread Standard | Metric Coarse |
| Chamfer | Bottoming |
| Chamfered Threads | 1-1.5P |
| Material | Cobalt |
| Coating/Finish | Steam Oxide |
| Coolant Through | No |
| Class Of Fit | 6H |
| Thread Limit | D11 |
| Overall Length (Decimal Inch) | 3.3465 |
| Overall Length (mm) | 85.70 |
| Thread Direction | Right Hand |
| Thread Length (Decimal Inch) | 0.8268 |
| Thread Length (mm) | 21.00 |
| Shank Diameter (Decimal Inch) | 0.3670 |
| Shank Diameter (mm) | 9.32 |
| Square Length (mm) | 11.11 |
| Material Application | Alloy Steel, Aluminum, Carbon Steel, Die Steel, Hardened Steel, Stainless Steel |
| Application | Blind Hole Threading |
| Series | 14101 |
| Tapping Depth (Decimal Inch) | 1.9331 |
| Tapping Depth (mm) | 49.10 |
| Square Size (Decimal Inch) | 0.2756 |
| Square Size (mm) | 6.99 |
| Material Application Code | P, N |
| Trade Name | HY-PRO NRT |
