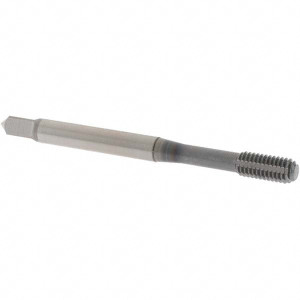

OSG Thread Forming Tap: M5x0.80 Metric Coarse, Bottoming, Powdered Metal High Speed Steel, TiCN Coated D4, Series EXOTAP NRT 1415002208 - 75677815
Brand: OSG USA, INC.- SKU:
- 75677815
- ID:
- 783150
$65.15
OSG Thread Forming Tap: M5x0.80 Metric Coarse, Bottoming, Powdered Metal High Speed Steel, TiCN Coated D4, Series EXOTAP NRT
Manufacturer Part #: 1415002208
S/N: 75677815
(Minimum Order Quantity=1, Package Quantity=1)
Specifications:
| Thread Size (mm) | M5x0.8 |
| Thread Standard | Metric Coarse |
| Chamfer | Bottoming |
| Chamfered Threads | 1-1.5P |
| Material | Powdered Metal High-Speed Steel |
| Coating/Finish | V |
| Coolant Through | No |
| Class Of Fit | 3B |
| Thread Limit | D4 |
| Overall Length (Decimal Inch) | 2.3622 |
| Overall Length (mm) | 60.30 |
| Thread Direction | Right Hand |
| Thread Length (Decimal Inch) | 0.3780 |
| Thread Length (mm) | 9.60 |
| Shank Diameter (Decimal Inch) | 0.1940 |
| Shank Diameter (mm) | 4.93 |
| Square Length (mm) | 6.35 |
| Material Application | Alloy Steel, Aluminum, Carbon Steel, Die Steel, Hardened Steel, Stainless Steel |
| Application | Blind Hole Threading |
| Series | 14150 |
| Tapping Depth (Decimal Inch) | 0.8740 |
| Tapping Depth (mm) | 22.20 |
| Square Size (Decimal Inch) | 0.1520 |
| Square Size (mm) | 3.86 |
| Material Application Code | P, M, N |
| Trade Name | EXOTAP VP-NRT |
