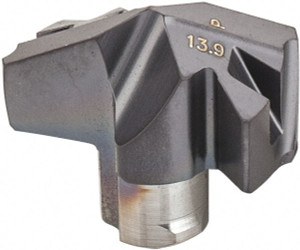

Iscar ICP0547 IC908 Carbide Replaceable Tip Drill TiAlN Finish, 140° Included Angle, 13.89mm Diam, 7.59mm High, Series ICP 5508403 - 75737197
Brand: Iscar- SKU:
- 75737197
- ID:
- 656697
$135.02
Iscar ICP0547 IC908 Carbide Replaceable Tip Drill TiAlN Finish, 140° Included Angle, 13.89mm Diam, 7.59mm High, Series ICP
Manufacturer Part #: 5508403
S/N: 75737197
UNSPSC: 23242105
(Minimum Order Quantity=1, Package Quantity=1)
Specifications:
| Cutting Diameter (Inch) | 35/64 |
| Cutting Diameter (Decimal Inch) | 0.5470 |
| Tip Material | Solid Carbide |
| Manufacturer Grade | IC908 |
| Material Grade | Submicron |
| Series | ICP |
| Coating Process | PVD |
| Insert Geometry | P |
| Insert Seat Size | 13 |
| Functional Length (Decimal Inch) | 0.2160 |
| Primary Workpiece Material | Steel |
| Primary Workpiece Material Code | P |
| Secondary Workpiece Material | Stainless Steel, Cast Iron, Super-alloys & Titanium, Hard Material |
| Secondary Workpiece Material Code | M, K, S, H |
| Standards | ISO 13399 |
| Height (Decimal Inch) | 0.2990 |
| Height (mm) | 7.59 |
| Overall Length/Projection (Decimal Inch) | 0.2990 |
| Web Thinning | Web Thinned |
| Drill Point Angle | 140 |
| Flute Type | Spiral |
| Insert Holding Method | Twist |
| ISO Number | ICP 139 |
| Coolant Through | No |
| Point Type | Thinned |
| Spiral Type | Slow Spiral |
| Style | Honed Cutting Edge |
| Coating Classification | PVD |
| Applications | Drilling |
| Coating/Finish | TiAlN |
| Included Angle Degree | 140 |
| Number Of Flutes | 2 |
