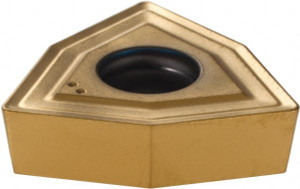

Komet WOEX120608-01 BK8425 Carbide Indexable Drill Insert TiAlN/TiN Finish, 17.6mm Inscribed Circle, 6mm Thick, 0.8mm Corner Radius, Neutral Cut, 84° Trigon W2958010088425 - 75763268

Komet WOEX120608-01 BK8425 Carbide Indexable Drill Insert TiAlN/TiN Finish, 17.6mm Inscribed Circle, 6mm Thick, 0.8mm Corner Radius, Neutral Cut, 84° Trigon W2958010088425 - 75763268

Brand:   Komet
SKU:
75763268
ID:
655988
callling
$47.37
Current Stock:
Adding to cart… The item has been added

Komet

Komet WOEX120608-01 BK8425 Carbide Indexable Drill Insert TiAlN/TiN Finish, 17.6mm Inscribed Circle, 6mm Thick, 0.8mm Corner Radius, Neutral Cut, 84° Trigon

Manufacturer Part #: W2958010088425

S/N: 75763268

UNSPSC: 23242105

(Minimum Order Quantity=1, Package Quantity=1)

Specifications:

Insert StyleWOEX
Insert MaterialSolid Carbide
Manufacturer GradeBK8425
Inscribed Circle (Decimal Inch)0.6929
Inscribed Circle (mm)17.60
Cutting DirectionNeutral
Corner Radius (Decimal Inch)0.0315
Corner Radius (mm)0.80
Chipbreaker01
Coating ProcessPVD
ShapeTrigon
Relief Angle8
Primary Workpiece MaterialUniversal
Primary Workpiece Material CodeK, M, P
StandardsISO 14001, ISO 900012008
Insert Size120608
Length (Mm)11.60
Length (Decimal Inch - 4 Decimals)0.4567
Included Angle Degree84
Thickness (Decimal Inch - 4 Decimals)0.2362
Coating/FinishCoated
Insert Size CodeW29
