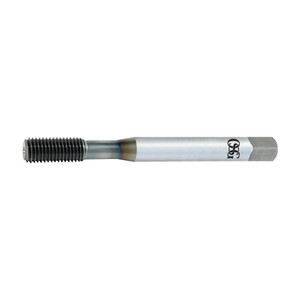

OSG Thread Forming Tap: M10x1.50 Metric Coarse, Modified Bottoming, Powdered Metal High Speed Steel, TiCN Coated D10, Series EXOTAP NRT 1415004108 - 75786210
Brand: OSG USA, INC.- SKU:
- 75786210
- ID:
- 782920
$110.55
OSG Thread Forming Tap: M10x1.50 Metric Coarse, Modified Bottoming, Powdered Metal High Speed Steel, TiCN Coated D10, Series EXOTAP NRT
Manufacturer Part #: 1415004108
S/N: 75786210
(Minimum Order Quantity=1, Package Quantity=1)
Specifications:
| Thread Size (mm) | M10x1.5 |
| Thread Standard | Metric Coarse |
| Chamfer | Modified Bottoming |
| Chamfered Threads | 2-2.5P |
| Material | Powdered Metal High-Speed Steel |
| Coating/Finish | V |
| Coolant Through | No |
| Class Of Fit | 2B |
| Thread Limit | D10 |
| Overall Length (Decimal Inch) | 2.9134 |
| Overall Length (mm) | 74.60 |
| Thread Direction | Right Hand |
| Thread Length (Decimal Inch) | 0.7087 |
| Thread Length (mm) | 18.00 |
| Shank Diameter (Decimal Inch) | 0.3810 |
| Shank Diameter (mm) | 9.68 |
| Square Length (mm) | 11.11 |
| Material Application | Alloy Steel, Aluminum, Carbon Steel, Die Steel, Hardened Steel, Stainless Steel |
| Application | Blind Hole Threading |
| Series | 14150 |
| Tapping Depth (Decimal Inch) | 1.2520 |
| Tapping Depth (mm) | 31.80 |
| Square Size (Decimal Inch) | 0.2860 |
| Square Size (mm) | 7.26 |
| Material Application Code | P, M, N |
| Trade Name | EXOTAP VP-NRT |
