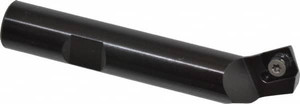

Kennametal 60° Lead Angle, 0.46" to 0.981" Cut Diam, 1/2" Shank Diam, Indexable & Chamfer End Mill Takes 1 Insert, SDEB 26152 Insert Style, KIPR Toolholder, 3" OAL, 0.136" Max Depth of Cut 1023681 - 75816991

Kennametal 60° Lead Angle, 0.46" to 0.981" Cut Diam, 1/2" Shank Diam, Indexable & Chamfer End Mill Takes 1 Insert, SDEB 26152 Insert Style, KIPR Toolholder, 3" OAL, 0.136" Max Depth of Cut 1023681 - 75816991

Brand:   Kennametal
SKU:
75816991
ID:
679859
callling
$318.56
Current Stock:
Adding to cart… The item has been added

Kennametal

Kennametal 60° Lead Angle, 0.46" to 0.981" Cut Diam, 1/2" Shank Diam, Indexable & Chamfer End Mill Takes 1 Insert, SDEB 26152 Insert Style, KIPR Toolholder, 3" OAL, 0.136" Max Depth of Cut

Manufacturer Part #: 1023681

S/N: 75816991

UNSPSC: 23291600

(Minimum Order Quantity=1, Package Quantity=1)

Specifications:

Minimum Cutting Diameter (Decimal Inch)0.4600
Maximum Cutting Diameter (Decimal Inch)0.9810
Maximum Depth of Cut (Decimal Inch)0.1360
Shank Diameter (Inch)1/2
Shank Diameter (Decimal Inch)0.5000
Number Of Cutter Inserts1
Insert StyleSDEB 26152
Insert Holding MethodScrew
Overall Length (Decimal Inch)3.0000
Toolholder StyleKIPR
Maximum RPM11000
Head Length (Decimal Inch)1.2200
Number Of Flutes1
Shank TypeWeldon Flat
