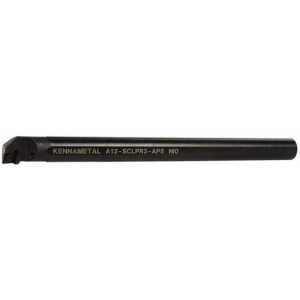

Kennametal 23.62mm Min Bore, Right Hand A-SCLP-AP Indexable Boring Bar 254mm OAL, 3/4" Shank Diam, -5° Lead Angle, Uses CP.., A-SCLP-AP Inserts, Through Coolant 1094954 - 75953265
Brand: Kennametal- SKU:
- 75953265
- ID:
- 684271
$314.38
Kennametal 23.62mm Min Bore, Right Hand A-SCLP-AP Indexable Boring Bar 254mm OAL, 3/4" Shank Diam, -5° Lead Angle, Uses CP.., A-SCLP-AP Inserts, Through Coolant
Manufacturer Part #: 1094954
S/N: 75953265
UNSPSC: 23241601
(Minimum Order Quantity=1, Package Quantity=1)
Specifications:
| Minimum Bore Diameter (mm) | 23.62 |
| Minimum Bore Diameter (Decimal Inch) | 0.9300 |
| Toolholder Style | A-SCLP-AP |
| Tool Material | Steel |
| Insert Compatibility | CP.. |
| Shank Diameter (mm) | 19.05 |
| Hand of Holder | Right Hand |
| Shank Diameter (Inch) | 3/4 |
| Overall Length (Decimal Inch) | 10.0000 |
| Overall Length (mm) | 254.00 |
| Insert Holding Method | Screw |
| Rake | Positive |
| Rake Angle | 5.00 |
| Lead Angle | -5.00 |
| Insert Inscribed Circle (Inch) | 3/8 |
| Multi-use Tool | No |
| Center to Cutting Edge (Decimal Inch) | 0.5000 |
| Coolant Hole Thread Size (Inch) | 1/8-27 NPT |
| Insert Thickness (Inch) | 5/32 |
| MSC/Manufacturer Number | A12SCLPR/L3AP5 |
| Coolant Through | Yes |
