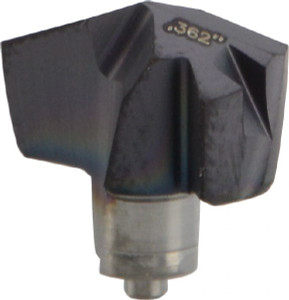

Iscar ICM0362 IC908 Carbide Replaceable Tip Drill TiAlN Finish, 140° Included Angle, 9.19mm Diam, 5.79mm High, Series ICM 5508350 - 75995068
Brand: Iscar- SKU:
- 75995068
- ID:
- 656698
$122.86
Iscar ICM0362 IC908 Carbide Replaceable Tip Drill TiAlN Finish, 140° Included Angle, 9.19mm Diam, 5.79mm High, Series ICM
Manufacturer Part #: 5508350
S/N: 75995068
UNSPSC: 23242105
(Minimum Order Quantity=1, Package Quantity=1)
Specifications:
| Cutting Diameter (Decimal Inch) | 0.3620 |
| Tip Material | Solid Carbide |
| Manufacturer Grade | IC908 |
| Material Grade | Submicron |
| Series | ICM |
| Coating Process | PVD |
| Insert Geometry | M |
| Insert Seat Size | 9 |
| Functional Length (Decimal Inch) | 0.1730 |
| Primary Workpiece Material | Stainless Steel, Superalloy, Titanium |
| Primary Workpiece Material Code | M, S |
| Secondary Workpiece Material | Steel, Cast Iron, Hard Material |
| Secondary Workpiece Material Code | P, K, H |
| Standards | ISO 13399 |
| Height (Decimal Inch) | 0.2280 |
| Height (mm) | 5.79 |
| Overall Length/Projection (Decimal Inch) | 0.2280 |
| Web Thinning | Web Thinned |
| Drill Point Angle | 140 |
| Flute Type | Spiral |
| Insert Holding Method | Twist |
| ISO Number | ICM 092 |
| Coolant Through | No |
| Point Type | Thinned |
| Spiral Type | Slow Spiral |
| Style | T-Land |
| Coating Classification | PVD |
| Applications | Drilling |
| Coating/Finish | TiAlN |
| Included Angle Degree | 140 |
| Number Of Flutes | 2 |
