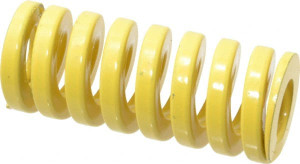

Danly 1-1/4" Hole Diam, 5/8" Rod Diam, 3" Free Length, Yellow Die Spring 123 Lb Max Deflection, 0.75" Max Deflection, Extra Heavy Duty, Chromium Vanadium Steel 9-2012-36 - 76017052

Danly 1-1/4" Hole Diam, 5/8" Rod Diam, 3" Free Length, Yellow Die Spring 123 Lb Max Deflection, 0.75" Max Deflection, Extra Heavy Duty, Chromium Vanadium Steel 9-2012-36 - 76017052

Brand:   Danly IEM
SKU:
76017052
ID:
444560
callling
$17.09
Current Stock:
Adding to cart… The item has been added

Danly IEM

Danly 1-1/4" Hole Diam, 5/8" Rod Diam, 3" Free Length, Yellow Die Spring 123 Lb Max Deflection, 0.75" Max Deflection, Extra Heavy Duty, Chromium Vanadium Steel

Manufacturer Part #: 9-2012-36

S/N: 76017052

UNSPSC: 23153000

(Minimum Order Quantity=1, Package Quantity=1)

Specifications:

Hole Diameter (Inch)1-1/4
Free Length (Inch)3
ColorYellow
Wire ShapeD-Shaped
MaterialChromium Vanadium Steel
Travel To Solid Load (Decimal Inch)0.9100
Maximum Deflection Load (Lb.)123.00
Maximum Deflection (Decimal Inch)0.7500
StandardsISO 10243 International Standard, ISO 90012015 Registered, NAAMS (North American Automotive Metric Standard)
