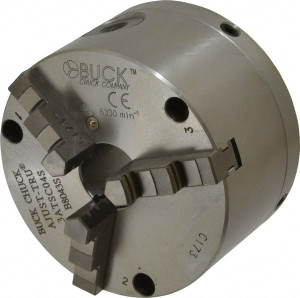

Buck Chuck 3 Jaws, 4" Diam, Self Centering Manual Lathe Chuck Front Mount, Adjustable, 6,300 Max RPM, 1.04" Through Hole Diam, Forged Steel B8043S - 76152131
Brand: Buck Chuck Company- SKU:
- 76152131
- ID:
- 450968
$1,703.77
Buck Chuck Company 3 Jaws, 4" Diam, Self Centering Manual Lathe Chuck Front Mount, Adjustable, 6,300 Max RPM, 1.04" Through Hole Diam, Forged Steel
Manufacturer Part #: B8043S
S/N: 76152131
UNSPSC: 31380000
(Minimum Order Quantity=1, Package Quantity=1)
Specifications:
| Chuck Type | Self-Centering |
| Chuck Diameter (Inch) | 4 |
| Number Of Jaws | 3 |
| Mount Type | Front |
| Body Material | Forged Steel |
| Adjustable | Yes |
| Reversible Jaws | Non-Reversible |
| Maximum Jaw Capacity (Inch) | 2.7600 (External), 2.9500 (Internal) |
| Maximum Rpm | 6300 |
| Jaw Type | Solid |
| TIR Repeatability (Decimal Inch) | 0.0005 |
| Body Length (Decimal Inch) | 2.3800 |
| Series | ATSC |
| Material | Steel |
| Contents | Allen Wrench, Internal & External Solid Jaws, Set of Mounting Bolts, Spring-Loaded T-Wrench |
| Minimum Jaw Capacity (Inch) | 0.0800 (External), 0.9800 (Internal) |
| Through-Hole Diameter (Decimal Inch) | 1.0400 |
