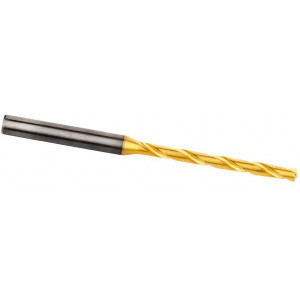

Kennametal #29 140° Spiral Flute Solid Carbide Taper Length Drill Bit Multilayer TiAlN Finish, 40mm Flute Length, 78mm OAL, Standard Point, Straight Shank, Through Coolant, Series B053A-CPG 4149598 - 76284173
Brand: Kennametal- SKU:
- 76284173
- ID:
- 745357
$189.30
Kennametal #29 140° Spiral Flute Solid Carbide Taper Length Drill Bit Multilayer TiAlN Finish, 40mm Flute Length, 78mm OAL, Standard Point, Straight Shank, Through Coolant, Series B053A-CPG
Manufacturer Part #: 4149598
S/N: 76284173
UNSPSC: 23241600
(Minimum Order Quantity=1, Package Quantity=1)
Specifications:
| Drill Bit Size (Wire) | #29 |
| Drill Bit Size (Decimal Inch) | 0.1360 |
| Tool Material | Solid Carbide |
| Drill Point Angle (Degrees) | 140 |
| Coating/Finish | Multilayer TiAlN |
| Flute Type | Spiral |
| Cutting Direction | Right Hand |
| Point Type | Standard |
| Coolant Through | Yes |
| Shank Type | Straight-Cylindrical |
| Shank Diameter (mm) | 6 |
| Flute Length (Decimal Inch) | 1.5748 |
| Flute Length x Diamter Ratio | 8xD |
| Overall Length (mm) | 78 |
| Series | B053A-CPG |
| Shank Diameter (Decimal Inch) | 0.2362 |
| Flute Length X Diameter Ratio | 8xD |
| Maximum Drilling Depth (Decimal Inch) | 1.2992 |
| Maximum Drilling Depth (mm) | 33.00 |
| Shank Length (Decimal Inch) | 1.4173 |
| Shank Length (mm) | 36.00 |
| Flute Length (mm) | 40.00 |
| Drill Point Length (Decimal Inch) | 0.0221 |
| Drill Point Length (mm) | 0.56 |
| Drill Bit Diameter Tolerance | -0.0005 to 0.0000 in, -0.012 to 0.000 mm |
| Web Configuration | Tapered |
| Specification Number | DIN 6537K |
| Spiral Type | Regular |
| Material Grade | KC7325 |
| UNSPSC Code | 23241600 |
