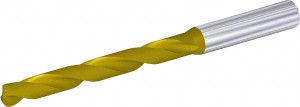

Kennametal #13 140° Solid Carbide Jobber Drill Multilayer TiAlN Finish, Right Hand Cut, Spiral Flute, Straight Shank, 74mm OAL, Standard Point 4149205 - 76293059
Brand: Kennametal- SKU:
- 76293059
- ID:
- 723966
$116.31
Kennametal #13 140° Solid Carbide Jobber Drill Multilayer TiAlN Finish, Right Hand Cut, Spiral Flute, Straight Shank, 74mm OAL, Standard Point
Manufacturer Part #: 4149205
S/N: 76293059
UNSPSC: 23241634
(Minimum Order Quantity=1, Package Quantity=1)
Specifications:
| Drill Bit Size (Wire) | #13 |
| Drill Bit Size (Decimal Inch) | 0.1850 |
| Drill Bit Material | Solid Carbide |
| Drill Point Angle (Degrees) | 140 |
| Flute Type | Spiral |
| Cutting Direction | Right Hand |
| Point Type | Standard |
| Specification Number | DIN 6537K |
| Coolant Through | Yes |
| Number of Flutes | 2 |
| Drill Bit Finish/Coating | Multilayer TiAlN |
| Shank Diameter (Decimal Inch) | 0.2362 |
| Overall Length (mm) | 74.00 |
| Overall Length (Decimal Inch) | 2.9134 |
| Spiral Type | Regular |
| Flute Length (mm) | 36.00 |
| Flute Length (Decimal Inch) | 1.4173 |
| Flute By Diameter Ratio | 5xD |
| Shank Diameter (mm) | 6.00 |
| Maximum Drilling Depth (Decimal Inch) | 1.1417 |
| Maximum Drilling Depth (mm) | 29.00 |
| Shank Length (mm) | 36.00 |
| Shank Length (Decimal Inch) | 1.4173 |
| Drill Point Length (mm) | 0.78 |
| Drill Point Length (Decimal Inch) | 0.0306 |
| Drill Bit Diameter Tolerance | -0.0005 to 0.0000 in |
| Web Configuration | Tapered |
| Shank Type | Straight-Cylindrical |
| Drill Bit Size Range (Decimal Inch) | 0.1500 - 0.2000 |
| Specification Designation | DIN |
| UNSPSC Code | 23241634 |
