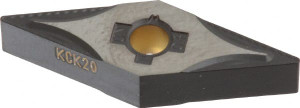

Kennametal VNMG331UN KCK20 Carbide Turning Insert TiCN/Al2O3 Finish, 16.61mm Long, 3/8" Inscribed Circle, 1/64" Corner Radius, 35° Diamond, Series KENLOC 3757618 - 76368901
Brand: Kennametal- SKU:
- 76368901
- ID:
- 672935
$36.99
Kennametal VNMG331UN KCK20 Carbide Turning Insert TiCN/Al2O3 Finish, 16.61mm Long, 3/8" Inscribed Circle, 1/64" Corner Radius, 35° Diamond, Series KENLOC
Manufacturer Part #: 3757618
S/N: 76368901
UNSPSC: 23242105
(Minimum Order Quantity=1, Package Quantity=1)
Specifications:
| Relief Angle | 0 |
| Insert Style | VNMG |
| Corner Radius (Inch) | 1/64 |
| Corner Radius (Decimal Inch) | 0.0156 |
| Included Angle | 35degree |
| Manufacturer Grade | KCK20 |
| Coating/Finish | AlTiN, AlCrN |
| Wiper Edge | No |
| Insert Hand | Neutral |
| Insert Thickness (Inch) | 3/16 |
| Insert Thickness (Decimal Inch) | 0.1875 |
| Series | KENLOC |
| Inscribed Circle (Inch) | 3/8 |
| Inscribed Circle (Decimal Inch) | 0.3750 |
| Insert Material | Carbide |
| Insert Shape | Diamond 35 |
| Number Of Cutting Edges | 4 |
| Insert Shape Code | V |
| Hole Diameter (Decimal Inch) | 0.1500 |
| Hole Diameter (Mm) ( - 0 Decimals) | 3.81 |
| Maximum Depth of Cut (mm) | 1.25 |
| Maximum Depth of Cut (Decimal Inch) | 0.0492 |
| Insert Holding Method | Clamp, Pin |
| Width (Inch) | 3/8in |
| Clearance Code | N |
| Tolerance Code | M |
| Coating Process | PVD |
| Length Range (Decimal Inch) | 0.7000 - 10.0000 |
| Rake | Negative |
| Insert Length (mm) | 16.61 |
| Insert Length (Decimal Inch) | 1.3076 |
| Primary Workpiece Material | Steel, Cast Iron |
| Primary Workpiece Material Code | P, K |
| Standards | ANSI, ISO |
| Manufacturers Catalog Number | 3757618 |
| Material Grade | K10, K25 |
| Proprietary Coating Designation | Multilayer Coating |
| Coating Classification | PVD |
| Chip Breaker | UN |
| Rake Angle | 0 |
| Cutting Edge Style | Chamfered & Honed |
| Industry Standard Number | VNMG331UN |
| Width (Decimal Inch - 4 Decimals) | 0.3750in |
| Multi-Use Tool | Yes |
| Full Radius | No |
| Multi-Use Application | Turning, Facing, Boring, Back Turning, Back Boring |
| UNSPSC Code | 23242105 |
| Insert Size Code | 331 |
