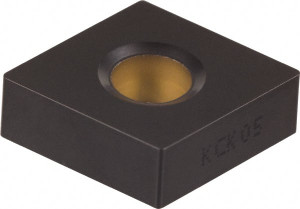

Kennametal CNMA643 KCK20 Carbide Turning Insert TiCN/Al2O3 Finish, 19.34mm Long, 3/4" Inscribed Circle, 3/64" Corner Radius, 80° Diamond, Series KENLOC 3758141 - 76369404
Brand: Kennametal- SKU:
- 76369404
- ID:
- 672617
$60.96
Kennametal CNMA643 KCK20 Carbide Turning Insert TiCN/Al2O3 Finish, 19.34mm Long, 3/4" Inscribed Circle, 3/64" Corner Radius, 80° Diamond, Series KENLOC
Manufacturer Part #: 3758141
S/N: 76369404
UNSPSC: 23242105
(Minimum Order Quantity=1, Package Quantity=1)
Specifications:
| ANSI Insert Code | CNMA643 |
| ISO Insert Code | CNMA190612 |
| Relief Angle | 0 |
| Insert Style | CNMA |
| Corner Radius (Inch) | 3/64 |
| Corner Radius (Decimal Inch) | 0.0469 |
| Included Angle | 80 |
| Manufacturer Grade | KCK20 |
| Coating/Finish | AlTiN, AlCrN |
| Wiper Edge | No |
| Insert Hand | Neutral |
| Insert Thickness (Inch) | 1/4 |
| Insert Thickness (Decimal Inch) | 0.2500 |
| Series | KENLOC |
| Inscribed Circle (Inch) | 3/4 |
| Inscribed Circle (Decimal Inch) | 0.7500 |
| Insert Material | Carbide |
| Insert Shape | C - Diamond (Rhombic) 80-Deg |
| Chip Breaker Operation | Flat Top |
| Grade Characteristics | Steel (P) - High Wear-Resistance, Cast Iron (K) - High Wear-Resistance to Moderate Wear-Resistance and Toughness |
| Number Of Cutting Edges | 4 |
| Side Clearance | Negative |
| Insert Shape Code | C |
| Hole Diameter (Decimal Inch) | 0.3125 |
| Hole Diameter (Mm) ( - 0 Decimals) | 7.93 |
| Maximum Depth of Cut (mm) | 1.25 |
| Maximum Depth of Cut (Decimal Inch) | 0.0492 |
| Insert Holding Method | Clamp, Pin |
| Width (Inch) | 3/4 |
| Clearance Code | N |
| Tolerance Code | M |
| Coating Process | PVD |
| Length Range (Decimal Inch) | 0.7000 - 10.0000 |
| Rake | Negative |
| Insert Length (mm) | 19.34 |
| Insert Length (Decimal Inch) | 0.7616 |
| Primary Workpiece Material | Steel, Cast Iron |
| Primary Workpiece Material Code | P, K |
| Standards | ANSI, ISO |
| Manufacturers Catalog Number | 3758141 |
| Material Grade | K10, K25 |
| Proprietary Coating Designation | Multilayer Coating |
| Coating Classification | PVD |
| Chip Breaker | Flat Top |
| Rake Angle | 0 |
| Cutting Edge Style | Honed |
| Industry Standard Number | CNMA643 |
| Width (Decimal Inch - 4 Decimals) | 0.7500 |
| Multi-Use Tool | Yes |
| Full Radius | No |
| Multi-Use Application | Turning, Facing, Boring |
| ANSI Size Code | 643 |
| ISO Size Code | 190612 |
| UNSPSC Code | 23242105 |
| Insert Size Code | 643 |
