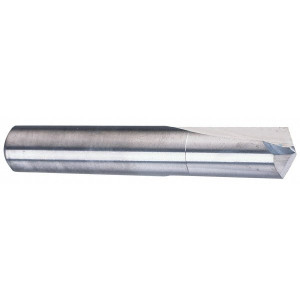

KYOCERA SGS #6, 0.204", 140° Point, Solid Carbide Straight Flute Drill Bit Bright Finish, 1-1/4" Flute Length, 2-3/8" OAL 56006 - 76529858
Brand: KYOCERA SGS- SKU:
- 76529858
- ID:
- 743512
$44.29
KYOCERA SGS #6, 0.204", 140° Point, Solid Carbide Straight Flute Drill Bit Bright Finish, 1-1/4" Flute Length, 2-3/8" OAL
Manufacturer Part #: 56006
S/N: 76529858
UNSPSC: 23241600
UPC: 691781560069
(Minimum Order Quantity=1, Package Quantity=1)
Specifications:
| Drill Bit Type | Straight-Flute |
| Drill Bit Size (Wire) | #6 |
| Tool Material | Carbide |
| Coating/Finish | Uncoated |
| Flute Length (Inch) | 1-1/4 |
| Flute Length (Decimal Inch) | 1.2500 |
| Drill Point Angle | 140 |
| Overall Length (Inch) | 2-3/8 |
| Shank Diameter (Decimal Inch) | 0.2040 |
| Coolant Through | No |
| Drill Bit Size (Decimal Inch) | 0.2040 |
| Material Grade | Micrograin |
| Overall Length (Decimal Inch) | 2.3750 |
| Series | 106 |
| Number Of Flutes | 2 |
| Point Type | Standard |
| Cutting Direction | Right Hand |
| Web Thinning | Web-Thinned |
| Drill Bit Diameter Tolerance | +0.0000 to -0.0005 in |
| Primary Workpiece Material | Cast Iron, Hardened Steel, Steel |
| Secondary Workpiece Material | Hardened Materials |
| Standards | DIN 6539 |
| Maximum Drilling Depth (Inch) | 1 |
| Maximum Drilling Depth (Decimal Inch) | 1.0000 |
| Shank Length (Decimal Inch) | 1.2000 |
| Flute By Diameter Ratio | 3xD |
