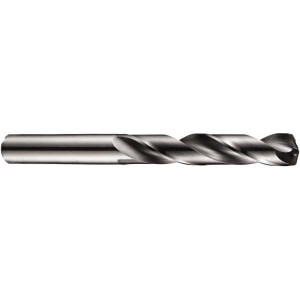

Dormer Pramet 6.6mm 140° Solid Carbide Jobber Drill TiAlN Finish, Right Hand Cut, Spiral Flute, Straight Shank, 91mm OAL, Four Facet Split Point 0625545 - 76544535
Brand: Dormer Pramet- SKU:
- 76544535
- ID:
- 719208
$155.28
Dormer Pramet 6.6mm 140° Solid Carbide Jobber Drill TiAlN Finish, Right Hand Cut, Spiral Flute, Straight Shank, 91mm OAL, Four Facet Split Point
Manufacturer Part #: 0625545
S/N: 76544535
UNSPSC: 23241634
(Minimum Order Quantity=1, Package Quantity=1)
Specifications:
| Drill Bit Size (mm) | 6.60 |
| Drill Bit Size (Decimal Inch) | 0.2598 |
| Drill Bit Material | Solid Carbide |
| Drill Point Angle (Degrees) | 140 |
| Flute Type | Spiral |
| Cutting Direction | Right Hand |
| Point Type | Four Facet, Split |
| Primary Workpiece Material | Aluminum Magnesium, Copper, Titanium |
| Coolant Through | Yes |
| Drill Bit Finish/Coating | TiAlN |
| Primary Workpiece Material Code | H, K, M, N, P, S |
| Overall Length (mm) | 91.00 |
| Spiral Type | Regular |
| Flute Length (mm) | 53.00 |
| Series | R453 |
| Tool Application | Centering |
| Flute By Diameter Ratio | 5xD |
| Shank Diameter (mm) | 8.00 |
| Shank Length (mm) | 36.00 |
| Drill Bit Diameter Tolerance | m7 |
| Web Thinning | Web-Thinned |
| Web Configuration | Tapered |
| Shank Type | Straight-Cylindrical |
| Standards | DIN 6537 L |
| Drill Bit Grade | High Performance |
| Drill Bit Size Range (Decimal Inch) | 0.2500 - 0.3000 |
| Drill Bit Size Range (mm) | 6.00 - 7.00 |
| Specification Designation | DIN |
| UNSPSC Code | 23241634 |
