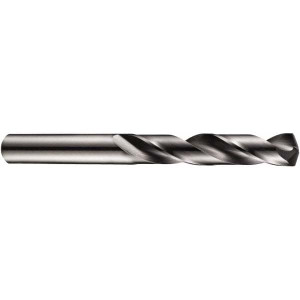

Dormer Pramet 3.5mm 140° Solid Carbide Jobber Drill TiAlN Finish, Right Hand Cut, Spiral Flute, Straight Shank, 66mm OAL, Four Facet Split Point 0614464 - 76545219
Brand: Dormer Pramet- SKU:
- 76545219
- ID:
- 719128
$86.20
Dormer Pramet 3.5mm 140° Solid Carbide Jobber Drill TiAlN Finish, Right Hand Cut, Spiral Flute, Straight Shank, 66mm OAL, Four Facet Split Point
Manufacturer Part #: 0614464
S/N: 76545219
UNSPSC: 23241634
(Minimum Order Quantity=1, Package Quantity=1)
Specifications:
| Drill Bit Size (mm) | 3.50 |
| Drill Bit Size (Decimal Inch) | 0.1378 |
| Drill Bit Material | Solid Carbide |
| Drill Point Angle (Degrees) | 140 |
| Flute Type | Spiral |
| Cutting Direction | Right Hand |
| Point Type | Four Facet, Split |
| Primary Workpiece Material | Aluminum Magnesium, Copper |
| Coolant Through | No |
| Drill Bit Finish/Coating | TiAlN |
| Primary Workpiece Material Code | H, K, M, N, P |
| Overall Length (mm) | 66.00 |
| Spiral Type | Regular |
| Flute Length (mm) | 28.00 |
| Series | R454 |
| Tool Application | Self-Centering |
| Flute By Diameter Ratio | 5xD |
| Shank Diameter (mm) | 6.00 |
| Shank Length (mm) | 36.00 |
| Drill Bit Diameter Tolerance | m7 |
| Web Thinning | Web-Thinned |
| Web Configuration | Tapered |
| Shank Type | Straight-Cylindrical |
| Standards | DIN 6537 L |
| Drill Bit Grade | High Performance |
| Drill Bit Size Range (Decimal Inch) | 0.1000 - 0.1500 |
| Drill Bit Size Range (mm) | 3.00 - 4.00 |
| Specification Designation | DIN |
| UNSPSC Code | 23241634 |
