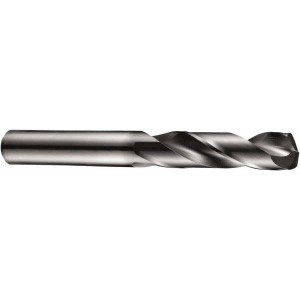

Dormer Pramet 11/64" 140° Spiral Flute Solid Carbide Screw Machine Drill Bit TiAlN Finish, Right Hand Cut, 24mm Flute Length, 66mm OAL, Four Facet Split Point, Straight Shank 0624876 - 76545862
Brand: Dormer Pramet- SKU:
- 76545862
- ID:
- 734534
$73.64
Dormer Pramet 11/64" 140° Spiral Flute Solid Carbide Screw Machine Drill Bit TiAlN Finish, Right Hand Cut, 24mm Flute Length, 66mm OAL, Four Facet Split Point, Straight Shank
Manufacturer Part #: 0624876
S/N: 76545862
UNSPSC: 23241635
(Minimum Order Quantity=1, Package Quantity=1)
Specifications:
| Drill Bit Size (Inch) | 11/64 |
| Drill Bit Size (Decimal Inch) | 0.1719 |
| Tool Material | Solid Carbide |
| Cutting Direction | Right Hand |
| Coating/Finish | Coated |
| Spiral Type | Regular |
| Flute Type | Spiral |
| Drill Point Angle | 140 |
| Coolant Through | No |
| Shank Type | Straight-Cylindrical |
| Point Type | Four Facet, Split |
| Primary Workpiece Material | Aluminum Magnesium, Copper |
| Overall Length (mm) | 66.00 |
| Shank Diameter (mm) | 6.00 |
| Series | R458 |
| Web Thinning | Web-Thinned |
| Web Configuration | Parallel |
| Drill Length Type | Screw Machine |
| Shank Length (mm) | 36.00 |
| Flute By Diameter Ratio | 3xD |
| Tool Performance | High Performance |
| Drill Bit Diameter Tolerance | 0 to -8 m |
| Standards | DIN 6537 K |
| Flute Length (mm) | 24.00 |
| Drill Bit Grade | High Performance |
| Drill Bit Size Range (Decimal Inch) | 0.1500 to 0.2000 |
| Specification Designation | DIN |
