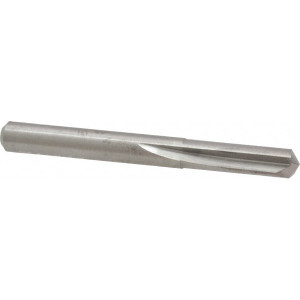

M.A. Ford #6, 0.204", 135° Point, Solid Carbide Straight Flute Drill Bit Bright Finish, 3/4" Flute Length, 2" OAL 20020400 - 76552165
Brand: M.A. Ford- SKU:
- 76552165
- ID:
- 743301
$41.68
M.A. Ford #6, 0.204", 135° Point, Solid Carbide Straight Flute Drill Bit Bright Finish, 3/4" Flute Length, 2" OAL
Manufacturer Part #: 20020400
S/N: 76552165
UNSPSC: 23241600
UPC: 697604203793
(Minimum Order Quantity=1, Package Quantity=1)
Specifications:
| Drill Bit Type | Straight-Flute |
| Drill Bit Size (Wire) | #6 |
| Tool Material | Carbide |
| Coating/Finish | Uncoated |
| Flute Length (Inch) | 3/4 |
| Flute Length (Decimal Inch) | 0.7500 |
| Drill Point Angle | 135 |
| Overall Length (Inch) | 2 |
| Shank Diameter (Decimal Inch) | 0.2040 |
| Coolant Through | No |
| Drill Bit Size (Decimal Inch) | 0.2040 |
| Overall Length (Decimal Inch) | 2.0000 |
| Series | 200 |
| Number Of Flutes | 2 |
| Point Type | Split |
| Cutting Direction | Right Hand |
| Tool Application | Holemaking |
| Web Thinning | Web-Thinned |
| Drill Bit Diameter Tolerance | +0.0000 to -0.0005 in |
| Primary Workpiece Material | Cast Iron, Non-Ferrous Metal, Stainless Steel, Steel |
| Primary Workpiece Material Code | H, K, M, N, P, S |
| Secondary Workpiece Material | Alloy Steel, Austenitic Stainless Steel, Ceramic, Glass, Hardened Materials, High Temperature Alloy, Stainless Steel, Titanium |
| Standards | DIN |
| Shank Length (Inch) | 1-1/4 |
| Shank Length (Decimal Inch) | 1.2500 |
