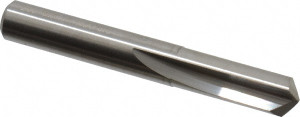

M.A. Ford 8.5mm, 135° Point, Solid Carbide Straight Flute Drill Bit Bright Finish, 25.5mm Flute Length, 64mm OAL 20033460 - 76553056
Brand: M.A. Ford- SKU:
- 76553056
- ID:
- 743320
$78.88
M.A. Ford 8.5mm, 135° Point, Solid Carbide Straight Flute Drill Bit Bright Finish, 25.5mm Flute Length, 64mm OAL
Manufacturer Part #: 20033460
S/N: 76553056
UNSPSC: 23241600
UPC: 697604205711
(Minimum Order Quantity=1, Package Quantity=1)
Specifications:
| Drill Bit Type | Straight-Flute |
| Drill Bit Size (mm) | 8.50 |
| Tool Material | Carbide |
| Coating/Finish | Uncoated |
| Flute Length (mm) | 25.50 |
| Drill Point Angle | 135 |
| Overall Length (mm) | 64.00 |
| Shank Diameter (mm) | 8.50 |
| Coolant Through | No |
| Drill Bit Size (Decimal Inch) | 0.3346 |
| Series | 200 |
| Number Of Flutes | 2 |
| Point Type | Split |
| Cutting Direction | Right Hand |
| Tool Application | Holemaking |
| Web Thinning | Web-Thinned |
| Drill Bit Diameter Tolerance | +0.000 to -0.013 mm, +0.0000 to -0.0005 in |
| Primary Workpiece Material | Cast Iron, Non-Ferrous Metal, Stainless Steel, Steel |
| Primary Workpiece Material Code | H, K, M, N, P, S |
| Secondary Workpiece Material | Alloy Steel, Austenitic Stainless Steel, Ceramic, Glass, Hardened Materials, High Temperature Alloy, Stainless Steel, Titanium |
| Standards | DIN |
| Shank Length (mm) | 38.50 |
