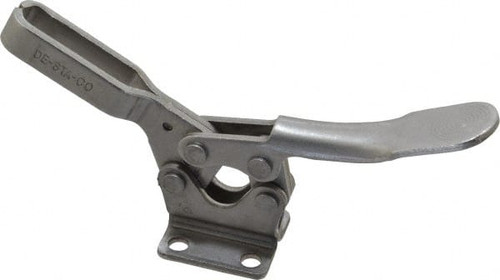

Destaco 600 Lb Holding Capacity, Horizontal Handle, Manual Hold Down Toggle Clamp 70° Handle Movement, 92° Bar Opening, U-Bar, Flanged Base, Electro-Plated Zinc, Stainless Steel 225-USS - 76988641
Brand: Destaco- SKU:
- 76988641
- ID:
- 441467
$67.80
Destaco 600 Lb Holding Capacity, Horizontal Handle, Manual Hold Down Toggle Clamp 70° Handle Movement, 92° Bar Opening, U-Bar, Flanged Base, Electro-Plated Zinc, Stainless Steel
Manufacturer Part #: 225-USS
S/N: 76988641
UNSPSC: 31162902
UPC: 697437522597
(Minimum Order Quantity=1, Package Quantity=1)
Specifications:
| Handle Orientation | Horizontal | ||
| Bar Style | U-Bar | ||
| Base Style | Flanged | ||
| Bar End Type | Fixed Spindle | ||
| Holding Capacity (N) | 2670.00 | ||
| Holding Capacity (Lb.) | 600.00 | ||
| Length Distance Between Mount Holes (mm) | 25.40 | ||
| Length Distance Between Mount Holes | 1in, 25.4mm | ||
| Length Distance Between Mount Holes (Inch) | 1.0 | ||
| Width Distance Between Mount Holes (mm) | 22.10 | ||
| Width Distance Between Mount Holes | 0.87in, 22.1mm | ||
| Width Distance Between Mount Holes (Decimal Inch) | 0.8700 | ||
| Height Under Bar (Decimal Inch) | 1.3100 | ||
| Height Under Bar (mm) | 33.27 | ||
| Overall Length (mm) | 175.51 | ||
| Overall Length (Decimal Inch) | 6.9100 | ||
| Overall Height (Decimal Inch) | 1.8400 | ||
| Overall Height (Mm - 5 Decimals) | 46.74 | ||
| Base Length (Inch) | 1-1/2 | ||
| Base Length (mm) | 38.10 | ||
| Base Width (Inch) | 1.3700 | ||
| Base Width | 34.80 | ||
| Handle Style | Straight | ||
| Material | Stainless Steel | ||
| Handle Material | Stainless Steel | ||
| Handle Color | Red | ||
| Mounting Hole Diameter (mm) | 6.60 | ||
| Mounting Hole Diameter (Decimal Inch) | 0.2600 | ||
| Bar Opening (Degrees) | 92 | ||
| Handle Movement (Degrees) | 70 | ||
| Maximum Mechanical Advantage | 05 | 01, 12 | 01 |
| Spindle Thread Size | 5/16-18 | ||
| Spindle Length (Decimal Inch) | 2.5000 | ||
| Spindle Travel (Inch) | 1.3800 | ||
| Spindle Travel (mm) | 35.05 | ||
| Bar Width (Inch) | 1/2 | ||
| Bar Width (mm) | 12.70 | ||
| Bar Width (Decimal Inch) | 0.5000 | ||
| UNSPSC Code | 31162902 | ||
| Front Of Base To Toggle Tip | 2.69in | ||
| Includes | (1) Spindle, (2) Nuts, (2) Washers | ||
| Front of Base To Tip Of Toggle Bar (Decimal Inch) | 2.6900 | ||
| Front of Base To Tip Of Toggle Bar (mm) | 68.33 | ||
| Number Of Mounting Holes | 4 | ||
| Finish Coating | Zinc |
