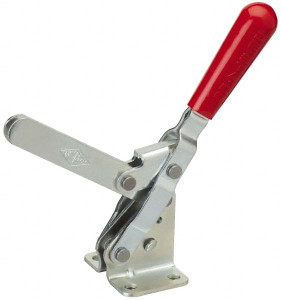

Destaco 750 Lb Holding Capacity, Vertical Handle, Manual Hold Down Toggle Clamp 58° Handle Movement, 103° Bar Opening, U-Bar, Flanged Base, Electro-Plated Zinc, Stainless Steel 210-USS - 76988765
Brand: Destaco- SKU:
- 76988765
- ID:
- 441471
$114.39
Destaco 750 Lb Holding Capacity, Vertical Handle, Manual Hold Down Toggle Clamp 58° Handle Movement, 103° Bar Opening, U-Bar, Flanged Base, Electro-Plated Zinc, Stainless Steel
Manufacturer Part #: 210-USS
S/N: 76988765
UNSPSC: 31162902
UPC: 697437521095
(Minimum Order Quantity=1, Package Quantity=1)
Specifications:
| Handle Orientation | Vertical | ||
| Bar Style | U-Bar | ||
| Base Style | Flanged | ||
| Bar End Type | Fixed Spindle | ||
| Holding Capacity (N) | 3340.00 | ||
| Holding Capacity (Lb.) | 750.00 | ||
| Length Distance Between Mount Holes (mm) | 32.00 | ||
| Length Distance Between Mount Holes | 1.26in, 32mm | ||
| Length Distance Between Mount Holes (Inch) | 1.26 | ||
| Width Distance Between Mount Holes (mm) | 44.96 | ||
| Width Distance Between Mount Holes | 1.77in, 44.96mm | ||
| Width Distance Between Mount Holes (Decimal Inch) | 1.7700 | ||
| Height Under Bar (Decimal Inch) | 1.6700 | ||
| Height Under Bar (mm) | 42.42 | ||
| Overall Length (mm) | 170.18 | ||
| Overall Length (Decimal Inch) | 6.7000 | ||
| Overall Height (Decimal Inch) | 9.1100 | ||
| Overall Height (Mm - 5 Decimals) | 231.39 | ||
| Base Length (mm) | 48.01 | ||
| Base Width (Inch) | 2.5600 | ||
| Base Width | 65.02 | ||
| Handle Style | Straight | ||
| Material | Stainless Steel | ||
| Handle Material | Stainless Steel | ||
| Handle Color | Red | ||
| Spindle Included | Yes | ||
| Mounting Hole Diameter (mm) | 8.38 | ||
| Mounting Hole Diameter (Decimal Inch) | 0.3300 | ||
| Bar Opening (Degrees) | 103 | ||
| Handle Movement (Degrees) | 58 | ||
| Maximum Mechanical Advantage | 07 | 01, 14 | 01 |
| Spindle Thread Size | 3/8-16 | ||
| Spindle Length | 3-1/4 | ||
| Spindle Travel (Inch) | 2.3500 | ||
| Spindle Travel (mm) | 59.69 | ||
| Bar Width (mm) | 20.07 | ||
| Bar Width (Decimal Inch) | 0.7900 | ||
| UNSPSC Code | 31162902 | ||
| Front Of Base To Toggle Tip | 3.65in | ||
| Includes | (2) Flanged Washers, (2) Nuts, Spindle | ||
| Front of Base To Tip Of Toggle Bar (Decimal Inch) | 3.6500 | ||
| Front of Base To Tip Of Toggle Bar (mm) | 92.71 | ||
| Number Of Mounting Holes | 4 | ||
| Finish Coating | Zinc |
