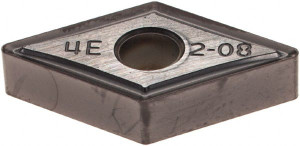

Kennametal DNMG432A4E SP0819 Carbide Turning Insert TiAlN Finish, 0.61" Long, 1/2" Inscribed Circle, 1/32" Corner Radius, 55° Diamond 5652883 - 77452639
Brand: Kennametal- SKU:
- 77452639
- ID:
- 673027
$39.13
Kennametal DNMG432A4E SP0819 Carbide Turning Insert TiAlN Finish, 0.61" Long, 1/2" Inscribed Circle, 1/32" Corner Radius, 55° Diamond
Manufacturer Part #: 5652883
S/N: 77452639
UNSPSC: 23242105
(Minimum Order Quantity=1, Package Quantity=1)
Specifications:
| Relief Angle | 0 |
| Insert Style | DNMG |
| Corner Radius (Inch) | 1/32 |
| Corner Radius (Decimal Inch) | 0.0313 |
| Included Angle | 55degree |
| Manufacturer Grade | SP0819 |
| Coating/Finish | TiAlN |
| Insert Thickness (Inch) | 3/16 |
| Insert Thickness (Decimal Inch) | 0.1875 |
| Inscribed Circle (Inch) | 1/2 |
| Inscribed Circle (Decimal Inch) | 0.5000 |
| Inscribed Circle (mm) | 12.70 |
| Insert Material | Carbide |
| Insert Shape | Diamond |
| Insert Shape Code | D |
| Hole Diameter (Decimal Inch) | 0.2030 |
| Insert Holding Method | Clamp, Pin |
| Clearance Code | N |
| Tolerance Code | M |
| Coating Process | PVD |
| Length Range (Decimal Inch) | 0.6000 - 0.6500 |
| Insert Length (Decimal Inch) | 0.6100 |
| Manufacturers Catalog Number | 5652883 |
| Material Grade | Micrograin |
| Chip Breaker | G |
| Industry Standard Number | DPMT3253MP |
| UNSPSC Code | 23242105 |
| Insert Size Code | 432 |
