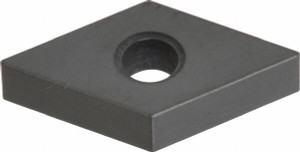

KYOCERA DNGA431T00825 A65 Ceramic Turning Insert Al2O3/TiC Finish, Neutral, 15mm Long, 1/2" Inscribed Circle, 1/64" Corner Radius, 55° Diamond 8819551 - 77497865
Brand: KYOCERA- SKU:
- 77497865
- ID:
- 673842
$30.33
KYOCERA DNGA431T00825 A65 Ceramic Turning Insert Al2O3/TiC Finish, Neutral, 15mm Long, 1/2" Inscribed Circle, 1/64" Corner Radius, 55° Diamond
Manufacturer Part #: 8819551
S/N: 77497865
UNSPSC: 23242105
(Minimum Order Quantity=1, Package Quantity=1)
Specifications:
| Relief Angle | 0 |
| Insert Style | DNGA |
| Corner Radius (Inch) | 1/64 |
| Corner Radius (Decimal Inch) | 0.0156 |
| Included Angle | 55degree |
| Manufacturer Grade | A65 |
| Coating/Finish | Al2O3, TiC |
| Wiper Edge | No |
| Insert Hand | Neutral |
| Insert Thickness (Inch) | 3/16 |
| Insert Thickness (Decimal Inch) | 0.1875 |
| Series | ISOI |
| Inscribed Circle (Inch) | 1/2 |
| Inscribed Circle (Decimal Inch) | 0.5000 |
| Insert Material | Ceramic |
| Insert Shape | Diamond 55 |
| Number Of Cutting Edges | 4 |
| Insert Shape Code | D |
| Hole Diameter (Decimal Inch) | 0.2032 |
| Hole Diameter (Mm) ( - 0 Decimals) | 5.16 |
| Maximum Depth of Cut (Decimal Inch) | 0.3940 |
| Insert Holding Method | Clamp, Pin |
| Width (Inch) | 1/2in |
| Clearance Code | N |
| Tolerance Code | G |
| Coating Process | Uncoated |
| Length Range (Decimal Inch) | 0.7000 - 10.0000 |
| Rake | Negative |
| Insert Length (mm) | 15.00 |
| Insert Length (Decimal Inch) | 1.1820 |
| Primary Workpiece Material | Cast Iron, Hard Material |
| Primary Workpiece Material Code | K, H |
| Secondary Workpiece Material | Hard Material |
| Secondary Workpiece Material Code | H |
| Iso Code | DNGA150404T02025 |
| Standards | ANSI, ISO |
| Manufacturers Catalog Number | TCR00960 |
| Material Grade | K01, K10, H01, H10 |
| Coating Classification | Uncoated |
| Industry Standard Number | DNGA431T00825A65 |
| Width (Decimal Inch - 4 Decimals) | 0.5000in |
| Multi-Use Tool | Yes |
| Full Radius | No |
| Multi-Use Application | Boring, Copying, External Turning |
| UNSPSC Code | 23242105 |
| Insert Size Code | 431 |
