3M 6" Long, 3:1, Polyolefin Heat Shrink Electrical Tubing Black 7010350271 - 77654697
Brand: 3M- SKU:
- 77654697
- ID:
- 410908
$69.97

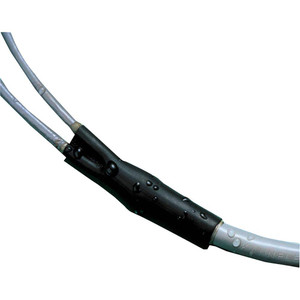

3M 6" Long, 3:1, Polyolefin Heat Shrink Electrical Tubing Black
S/N: 77654697
UNSPSC: 39121723
(Minimum Order Quantity=1, Package Quantity=3)
Specifications:
| Tubing Style | Heat Shrink | |
| Material | Polyolefin | |
| Shrink Ratio | 3 | 1 |
| Overall Length (Decimal Inch) | 6.0000 | |
| Overall Length (Inch) | 6 | |
| Minimum Compatible Wire Size (AWG) | 1/0 | |
| Color | Black | |
| Inside Diameter Before Shrinking (Fractional Inch) | 1-1/2 | |
| Inside Diameter Before Shrinking (mm) | 38.10 | |
| Inside Diameter After Shrinking (mm) | 12.95 | |
| Inside Diameter After Shrinking (Decimal Inch) | 0.5100 | |
| Shrink Temperature (Deg F) | 249.80 | |
| Resistance Features | Corrosion-Resistant, Fluid-Resistant, Fungus-Resistant, Water-Resistant | |
| Wall Thickness After Shrinking (mm) | 2.54 | |
| Wall Thickness After Shrinking (Decimal Inch) | 0.1000 | |
| Minimum Operating Temperature (F) | -67 | |
| Maximum Operating Temperature (F) | 230 | |
| Standards | CSA File LR38227, CSA Recognized, RoHS Compliant, UL File E157227, UL Recognized | |
| Minimum Operating Temperature F | -67 | |
| Maximum Operating Temperature F | 230 |
