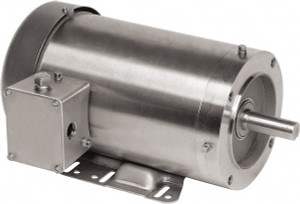

U.S. Motors 2 hp, TEFC/C-Face with Base Enclosure, No Thermal Protection, 1,750 RPM, 208-230/460 Volt, 60 Hz, Three Phase Premium Efficient Motor Size 145 Frame, C-Face with Base Mount, 1 Speed, Double Sealed Ball Bearings WDS2P2AC - 77655199
Brand: U.S. Motors- SKU:
- 77655199
- ID:
- 573916
$2,224.65
U.S. Motors 2 hp, TEFC/C-Face with Base Enclosure, No Thermal Protection, 1,750 RPM, 208-230/460 Volt, 60 Hz, Three Phase Premium Efficient Motor Size 145 Frame, C-Face with Base Mount, 1 Speed, Double Sealed Ball Bearings, 5.7-5.4/2.7 Full Load Amps, F Class Insulation
Manufacturer Part #: WDS2P2AC
S/N: 77655199
UNSPSC: 26100000
(Minimum Order Quantity=1, Package Quantity=1)
Specifications:
| Motor Type | Three Phase Premium Efficient |
| Enclosure Style | C-Face with Base |
| TEFC | |
| Horsepower | 2 |
| Name Plate RPMs | 1750 |
| Voltage | 208 to 230, 460V |
| Frequency (Hz - 0 Decimals) | 60 |
| Frame Size | 145 |
| Mount Style | C-Face with Base |
| Mount Type | C-Face with Base |
| Bearing Type | Double Sealed Ball |
| Full Load Amperage | 5.7 to 5.4/2.7 |
| Insulation Class | F |
| Frame Material | Stainless Steel |
| Service Factor Rating | 1.00 |
| Applications | Food Processing |
| Thermal Protection | None |
| Number Of Speeds | 1 |
| Type | TEFC |
| Product Service Code | 6105 |
