3M 48" Long, 2:1, Polyolefin Heat Shrink Electrical Tubing Clear 7000133515 - 77677631
Brand: 3M- SKU:
- 77677631
- ID:
- 410104
$130.27

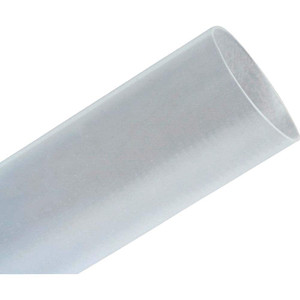

3M 48" Long, 2:1, Polyolefin Heat Shrink Electrical Tubing Clear
S/N: 77677631
UNSPSC: 39121723
(Minimum Order Quantity=1, Package Quantity=12)
Specifications:
| Tubing Style | Heat Shrink | |
| Material | Polyolefin | |
| Shrink Ratio | 2 | 1 |
| Overall Length (Decimal Inch) | 48.0000 | |
| Overall Length (Feet) | 4.00 | |
| Overall Length (Inch) | 48 | |
| Minimum Compatible Wire Size (AWG) | 4 | |
| Maximum Compatible Wire Size (AWG) | 3/0 | |
| Color | Clear | |
| Inside Diameter Before Shrinking (Fractional Inch) | 3/4 | |
| Inside Diameter Before Shrinking (mm) | 19.05 | |
| Inside Diameter After Shrinking (mm) | 9.53 | |
| Shrink Temperature (Deg F) | 212.00 | |
| Resistance Features | Corrosion-Resistant, Fire-Resistant, Fungus-Resistant, Solvent-Resistant, Split-Resistant | |
| Wall Thickness After Shrinking (mm) | 0.76 | |
| Wall Thickness After Shrinking (Decimal Inch) | 0.0300 | |
| Minimum Operating Temperature (F) | -67 | |
| Maximum Operating Temperature (F) | 275 | |
| Standards | ABS Type Approved, AMS3636, AMS3637, CSA Certified, CSA LR38227, DTL-23053/5 Class 1 Class 2, RoHS Compliant, UL Recognized File E39100 | |
| Minimum Operating Temperature F | -67 | |
| Maximum Operating Temperature F | 275 |
