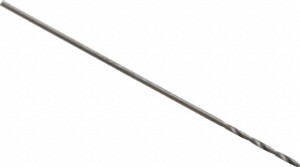

Walter Titex 0.31mm 118° High Speed Steel Jobber Drill Oxide Finish, Right Hand Cut, Spiral Flute, Straight Shank, 3/4" OAL, Standard Point 5058393 - 77849248
Brand: Walter Titex- SKU:
- 77849248
- ID:
- 729399
$11.17
Walter Titex 0.31mm 118° High Speed Steel Jobber Drill Oxide Finish, Right Hand Cut, Spiral Flute, Straight Shank, 3/4" OAL, Standard Point
Manufacturer Part #: 5058393
S/N: 77849248
UNSPSC: 23241634
(Minimum Order Quantity=10)
(Please order in multiples of 10)
Specifications:
| Drill Bit Size (mm) | 0.31 |
| Drill Bit Size (Decimal Inch) | 0.0122 |
| Drill Bit Material | High Speed Steel |
| Drill Point Angle (Degrees) | 118 |
| Flute Type | Spiral |
| Cutting Direction | Right Hand |
| Point Type | Standard |
| Primary Workpiece Material | Cast Iron, Steel |
| Coolant Through | No |
| Number of Flutes | 2 |
| Drill Bit Finish/Coating | Oxide |
| Flute Length (Inch) | 5/32 |
| Primary Workpiece Material Code | K, P |
| Shank Diameter (Decimal Inch) | 0.0122 |
| Overall Length (mm) | 19.00 |
| Overall Length (Inch) | 3/4 |
| Spiral Type | Regular |
| Flute Length (mm) | 4.00 |
| Series | A1211 |
| Tool Application | Blind Hole, Stack Drilling |
| Flute By Diameter Ratio | 8xD |
| Maximum Drilling Depth (Decimal Inch) | 0.1340 |
| Maximum Drilling Depth (mm) | 3.40 |
| Shank Length (mm) | 15.00 |
| Shank Length (Decimal Inch) | 0.5910 |
| Drill Point Length (mm) | 0.09 |
| Drill Point Length (Decimal Inch) | 0.0036 |
| Drill Bit Diameter Tolerance | h8 |
| Web Thinning | Web-Thinned |
| Web Configuration | Tapered |
| Shank Type | Straight-Cylindrical |
| Tool Performance | High Performance |
| Standards | ANSI, ISO |
| Drill Bit Grade | General Purpose |
| Drill Bit Size Range (Decimal Inch) | 0.0000 - 0.0500 |
| Drill Bit Size Range (mm) | 0.00 - 2.00 |
| Specification Designation | BS, DIN |
| UNSPSC Code | 23241634 |
