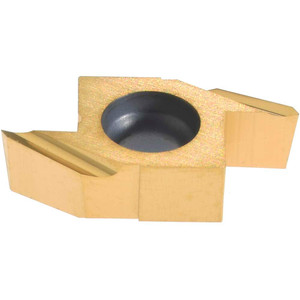

Tungaloy J10ER005BF J740 Carbide Turning Insert TiN Finish, RH, 1/4" Inscribed Circle, 0.002" Corner Radius, 1/8" Thick 6804818 - 78071347
Brand: Tungaloy- SKU:
- 78071347
- ID:
- 678034
$36.97
Tungaloy J10ER005BF J740 Carbide Turning Insert TiN Finish, RH, 1/4" Inscribed Circle, 0.002" Corner Radius, 1/8" Thick
Manufacturer Part #: 6804818
S/N: 78071347
UNSPSC: 23242105
UPC: 677162048180
(Minimum Order Quantity=1, Package Quantity=1)
Specifications:
| Relief Angle | 5 |
| Insert Style | J10ER |
| Corner Radius (Decimal Inch) | 0.0020 |
| Included Angle | 60degree |
| Manufacturer Grade | J740 |
| Coating/Finish | TiN |
| Wiper Edge | No |
| Insert Hand | Right Hand |
| Insert Thickness (Inch) | 1/8 |
| Insert Thickness (Decimal Inch) | 0.1250 |
| Series | J10ER |
| Inscribed Circle (Inch) | 1/4 |
| Inscribed Circle (Decimal Inch) | 0.2500 |
| Insert Material | Carbide |
| Insert Shape | Irregular |
| Number Of Cutting Edges | 2 |
| Insert Shape Code | Specialty/Non-Standard |
| Hole Diameter (Decimal Inch) | 0.1180 |
| Hole Diameter (Mm) ( - 0 Decimals) | 3.00 |
| Maximum Depth of Cut (Decimal Inch) | 0.1181 |
| Insert Holding Method | Screw |
| Width (Inch) | 1/4in |
| Coating Process | PVD |
| Length Range (Decimal Inch) | 0.5000 - 0.6000 |
| Rake | Positive |
| Insert Length (Decimal Inch) | 0.5098 |
| Primary Workpiece Material | Steel, Stainless Steel |
| Primary Workpiece Material Code | P, M |
| Iso Code | J10ER005BF |
| Standards | ANSI, ISO |
| Manufacturers Catalog Number | 6804818 |
| Material Grade | Ultra Fine Grain |
| Proprietary Coating Designation | TiN |
| Coating Classification | PVD |
| Chip Breaker | Common |
| Cutting Edge Style | Sharp |
| Industry Standard Number | J10ER005BF |
| Width (Decimal Inch - 4 Decimals) | 0.2500in |
| Multi-Use Tool | No |
| Full Radius | No |
| Multi-Use Application | Back Turning |
| UNSPSC Code | 23242105 |
| Insert Size Code | 005 |
