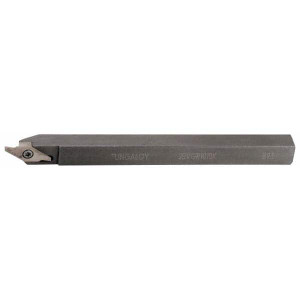

Tungaloy 23mm Max Depth, External Right Hand Indexable Grooving Toolholder 125mm OAL, 16mm x 16mm Shank, Uses JVGR1... Inserts, JSVG Toolholder, Series J 6804903 - 78072121
Brand: Tungaloy- SKU:
- 78072121
- ID:
- 685857
$167.88
Tungaloy 23mm Max Depth, External Right Hand Indexable Grooving Toolholder 125mm OAL, 16mm x 16mm Shank, Uses JVGR1... Inserts, JSVG Toolholder, Series J
Manufacturer Part #: 6804903
S/N: 78072121
UNSPSC: 23153308
UPC: 677162049033
(Minimum Order Quantity=1, Package Quantity=1)
Specifications:
| Internal or External | External |
| Toolholder Type | Non-Face Grooving |
| Hand of Holder | Right Hand |
| Cutting Direction | Right Hand |
| Maximum Depth of Cut (Decimal Inch) | 0.9055 |
| Maximum Depth of Cut (mm) | 23.00 |
| Minimum Groove Width (mm) | 0.33 |
| Maximum Groove Width (mm) | 2.00 |
| Toolholder Style | JSVG |
| Insert Holding Method | Screw |
| Insert Compatibility | JVGR1... |
| Compatible Insert Size Code | JVGR/L |
| Shank Width/Diameter (Decimal Inch) | 0.6299 |
| Shank Width/Diameter (mm) | 16.00 |
| Shank Height (mm) | 16.00 |
| Shank Height (Decimal Inch) | 0.6300 |
| Series | J |
| Shank Length (Decimal Inch) | 4.0140 |
| Overall Length (mm) | 125.00 |
| Overall Length (Decimal Inch) | 4.9200 |
| Multi-use Tool | No |
| Back of Bar to Cutting Edge (mm) | 16.00 |
| Head Height (mm) | 16.00 |
| Head Length (Decimal Inch) | 0.9055 |
| Head Length (mm) | 23.00 |
| Primary Workpiece Material | Universal |
| Primary Workpiece Material Code | K, M, P, S |
| Standards | ISO |
| MSC/Manufacturer Number | JSVGR1616K |
| Coolant Through | No |
