PRO-SOURCE 5-Port 3/8" Inlet NPT 3/8" Outlet 5-Way 3-Position Lever Actuator/Detent Return Manual Mechanical Air Valve 1.897 CV Rating, 127.98 Max psi 4550331010PRO - 78261146

PRO-SOURCE 5-Port 3/8" Inlet NPT 3/8" Outlet 5-Way 3-Position Lever Actuator/Detent Return Manual Mechanical Air Valve 1.897 CV Rating, 127.98 Max psi 4550331010PRO - 78261146

Brand:   PRO-SOURCE
SKU:
78261146
ID:
576549
callling
$79.68
Current Stock:
Adding to cart… The item has been added

PRO-SOURCE

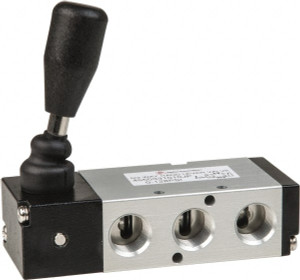

PRO-SOURCE 5-Port 3/8" Inlet NPT 3/8" Outlet 5-Way 3-Position Lever Actuator/Detent Return Manual Mechanical Air Valve 1.897 CV Rating, 127.98 Max psi

Manufacturer Part #: 4550331010PRO

S/N: 78261146

UNSPSC: 40141603

(Minimum Order Quantity=1, Package Quantity=1)

Specifications:

Valve DesignHand Lever
Actuator TypeLever, Detent
Design5-Way
Cv Rating1.8970
Thread TypeNPT
Number of Ports5
TypeLever, 5-Way Valve, Manual Mechanical Valve
Height (Decimal Inch)4.13
Number Of Positions3
Length (Decimal Inch - 4 Decimals)4.4880
Width (Decimal Inch - 4 Decimals)1.8110
UNSPSC Code40141603
Warning Icon

WARNING: This Product Can Expose You To Materials And/Or Chemicals Which Are Known To The State Of California To Cause Cancer And/Or Reproductive Harm.

For more info, visit www.p65warnings.ca.gov.
