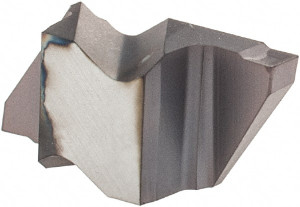

Kennametal NG2062RK KCU25 Carbide Grooving Insert AlTiN Finish, RH, 1.58mm Cutting Width, 2.79mm Max Depth, Series Top Notch 4109676 - 78273380
Brand: Kennametal- SKU:
- 78273380
- ID:
- 650561
$41.99
Kennametal NG2062RK KCU25 Carbide Grooving Insert AlTiN Finish, RH, 1.58mm Cutting Width, 2.79mm Max Depth, Series Top Notch
Manufacturer Part #: 4109676
S/N: 78273380
UNSPSC: 23242105
(Minimum Order Quantity=1, Package Quantity=1)
Specifications:
| Insert Style | NG |
| Cutting Width (Decimal Inch) | 0.0622 |
| Cutting Width (mm) | 1.58 |
| Insert Hand | Right Hand |
| Maximum Depth of Cut (Decimal Inch) | 0.1098 |
| Maximum Depth of Cut (mm) | 2.79 |
| Insert Material | Solid Carbide |
| Manufacturer Grade | KCU25 |
| Full Radius | No |
| Corner Radius (Decimal Inch) | 0.0075 |
| Corner Radius (mm) | 0.19 |
| Insert Holding Method | Clamp |
| Insert Size | 2062 |
| Material Grade | C2, C6 |
| Cutting Height (mm) | 5.56 |
| Maximum Depth Of Cut Range (Decimal Inch) | 0.1000 to 0.1500 |
| Cutting Height (Decimal Inch) | 0.2190 |
| Maximum Depth Of Cut Range (mm) | 2.00 to 3.00 |
| Multi-use Tool | No |
| Series | Top Notch |
| Coating Process | PVD |
| Chip Breaker | K |
| Insert Seat Size | 2 |
| MSC/Manufacturer Number | NG2062R/LK |
| Overall Width (mm) | 3.84 |
| Overall Width (Decimal Inch - 4 Decimals) | 0.1510 |
| Included Angle Degree | 55 |
| Coating/Finish | AlTiN |
| Single Or Double End | Double |
