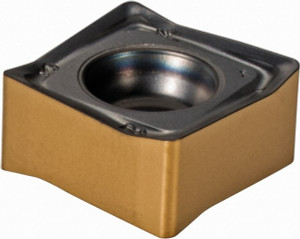

Iscar S890SNMU1305PNTR IC810 Carbide Milling Insert AlTiN/TiN Finish, 0.22" Thick 5606639 - 78426525
Brand: Iscar- SKU:
- 78426525
- ID:
- 660484
$35.80
Iscar S890SNMU1305PNTR IC810 Carbide Milling Insert AlTiN/TiN Finish, 0.22" Thick
Manufacturer Part #: 5606639
S/N: 78426525
UNSPSC: 23291601
(Minimum Order Quantity=1, Package Quantity=1)
Specifications:
| Insert Style | SNMU |
| Insert Size | 13 |
| Insert Material | Solid Carbide |
| Insert Shape | Square |
| Manufacturer Grade | IC810 |
| Corner Radius (Decimal Inch) | 0.0315 |
| Corner Radius (mm) | 0.79 |
| Number Of Cutting Edges | 8 |
| Thickness (Decimal Inch - 4 Decimals) | 0.2200 |
| Coating/Finish | AlTiCrN, TiN |
| Relief Angle | 0 |
| Maximum Depth of Cut (Decimal Inch) | 0.3540 |
| Maximum Depth of Cut (mm) | 8.99 |
| Insert Size Code | 1305 |
| Inscribed Circle (Decimal Inch) | 0.5118 |
| Inscribed Circle (mm) | 13.00 |
| Thickness Range (Decimal Inch) | 0.2000 to 0.2200 |
| Corner Radius (Inch) | 1/32 |
| Inscribed Circle Range (Decimal Inch) | 0.5100 to 0.6000 |
| Length Range (Decimal Inch) | 0.5000 to 0.6000 |
| Insert Hand | Neutral |
| Series | HELIDO |
| Coating Process | PVD |
| Cutting Edge Effective Length (Decimal Inch) | 0.3540 |
| Rake | Negative |
| Primary Workpiece Material | Steel, Cast Iron |
| Primary Workpiece Material Code | P, K |
| Ansi Code | S890 SNMU 1305PNTR IC810 |
| Iso Code | S890 SNMU 1305PNTR |
| Standards | ANSI, ISO 13399 |
| Cutting Edge Style | T-Land |
| Manufacturers Catalog Number | S890 SNMU 1305PNTR IC810 |
| Cutter Series Compatibility | S890-13 |
| Chip Breaker | PNTR |
| Material Application | Steel, Cast Iron |
| Insert Holding Method | Screw |
| Coating Classification | Sumotec PVD |
| Single or Double Sided Insert | Double |
| Included Angle Degree | 90 |
| Width (Decimal Inch - 4 Decimals) | 0.5120 |
| Width (mm - 2 Decimals) | 13.00 |
| Multi-Use Tool | Yes |
| Length (Decimal Inch - 4 Decimals) | 0.5118 |
