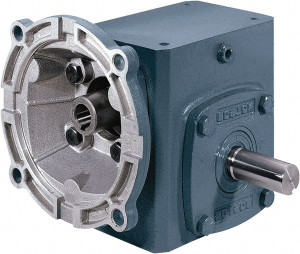

Boston Gear 1.33 Centerline Distance, 30:1, 58 RPM Output, 0.39 Input Horsepower, 311 Lbs. Max Torque, Speed Reducer Part No. F713-30-B5-J, Single Shaft Right, 5/8" Bore, 3.06" High, 56C NEMA 51887 - 78449139
Brand: Boston Gear- SKU:
- 78449139
- ID:
- 558512
$873.68
Boston Gear 1.33 Centerline Distance, 30:1, 58 RPM Output, 0.39 Input Horsepower, 311 Lbs. Max Torque, Speed Reducer Part No. F713-30-B5-J, Single Shaft Right, 5/8" Bore, 3.06" High, 56C NEMA
Manufacturer Part #: 51887
S/N: 78449139
UNSPSC: 26111500
UPC: 781711518878
(Minimum Order Quantity=1, Package Quantity=1)
Specifications:
| Centerline Distance | 1.3300 | |
| Reducer Type | Quill | |
| Shaft Type | Single | |
| Ratio | 30 | 1 |
| Shaft Orientation | Right Angle | |
| Center-to-center Shaft Distance | 1.3300in | |
| PartNo | F713-30-B5-J | |
| Speed Ratio | 30 | 1 |
| Maximum Input Horsepower | 0.39 | |
| Maximum Output Speed | 58.0RPM | |
| Nema/Iec Frame Size | 56C NEMA | |
| Maximum Torque (In/Lb.) | 311.0 | |
| Bore Diameter (Decimal Inch) | 0.6250 | |
| Shaft Diameter (Decimal Inch) | 0.6250 | |
| Gear Type | Worm | |
| Housing Material | Cast Iron | |
| Overall Length (Decimal Inch) | 7.2500 | |
| Overall Width (Decimal Inch - 4 Decimals) | 5.8125 | |
| Standards | ISO 9001 | 2015 |
| Output RPM at 1750 Input | 58.0 | |
| Torque Output (In/Lb) with 1/3 Horsepower Motor @ 1750 | 265 | |
| Torque Output (In/Lb) with 1/6 Horsepower Motor @ 1750 | 133 | |
| Torque Output (In/Lb) with 1/4 Horsepower Motor @ 1750 | 199 | |
| Height (Decimal Inch) | 3.0600 |
