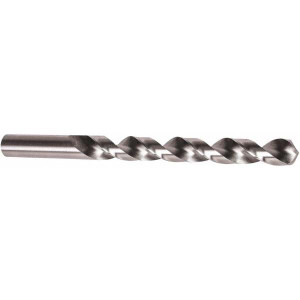

Precision Twist Drill 7/32" 118° High Speed Steel Jobber Drill Bright Finish, Right Hand Cut, Spiral Flute, Straight Shank, 3-3/4" OAL, Standard Point 010514 - 78503992
Brand: Precision Twist Drill- SKU:
- 78503992
- ID:
- 726743
$8.16
Precision Twist Drill 7/32" 118° High Speed Steel Jobber Drill Bright Finish, Right Hand Cut, Spiral Flute, Straight Shank, 3-3/4" OAL, Standard Point
Manufacturer Part #: 010514
S/N: 78503992
UNSPSC: 23241634
UPC: 086071105141
(Minimum Order Quantity=1, Package Quantity=1)
Specifications:
| Drill Bit Size (Inch) | 7/32 |
| Drill Bit Size (Decimal Inch) | 0.2188 |
| Drill Bit Material | High Speed Steel |
| Drill Point Angle (Degrees) | 118 |
| Coating/Finish | Bright/Uncoated |
| Flute Type | Spiral |
| Cutting Direction | Right Hand |
| Point Type | Standard |
| Primary Workpiece Material | Steel, Cast Iron, Non-Ferrous Metal, Superalloys & Titanium |
| Coolant Through | No |
| Number of Flutes | 2 |
| Flute Length (Inch) | 2-1/2 |
| Primary Workpiece Material Code | P, K, N, S |
| Shank Diameter (Decimal Inch) | 0.2188 |
| Overall Length (Inch) | 3-3/4in |
| Overall Length (Decimal Inch) | 3.7500in |
| Spiral Type | Regular |
| Flute Length (Decimal Inch) | 2.5000 |
| Series | R10H-R18H |
| Tool Application | Drilling |
| Flute By Diameter Ratio | 11xD |
| Shank Diameter (Inch) | 7/32in |
| Maximum Drilling Depth (Decimal Inch) | 2.5000 |
| Maximum Drilling Depth (Inch) | 2-1/2 |
| Shank Length (Decimal Inch) | 1.2500in |
| Shank Length (Inch) | 1-1/4in |
| Number of Flats | 0 |
| Web Thinning | Web-Thinned |
| Web Configuration | Tapered |
| Shank Type | Straight-Cylindrical |
| Tool Performance | General Purpose |
| Standards | ANSI |
| Double Margin | No |
| Drill Bit Grade | General Purpose |
| Drill Bit Size Range (Decimal Inch) | 0.2000 - 0.2500 |
| Specification Designation | ANSI |
| UNSPSC Code | 23241634 |
